CT45, CT43 - HIGH SPEED SILICON SWITCHING DIODE

The CT45 by Continental Device India Limited is a HIGH SPEED SILICON SWITCHING DIODE. Below is the official datasheet preview.

📥 Download Datasheet

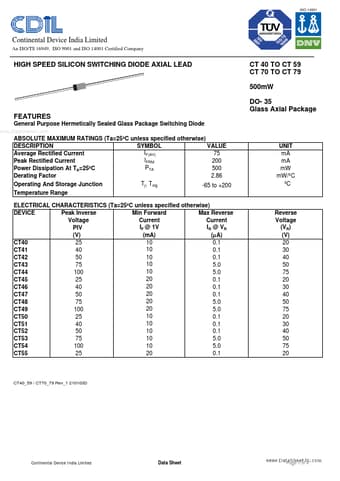

Official preview page of the CT45 HIGH SPEED SILICON SWITCHING DIODE datasheet (Continental Device India Limited).

Datasheet Details

Part number CT45, CT43
Manufacturer Continental Device India Limited
File Size 195.05 KB
Description HIGH SPEED SILICON SWITCHING DIODE
Datasheet download datasheet CT43_ContinentalDeviceIndiaLimited.pdf
Note This datasheet PDF includes multiple part numbers: CT45, CT43.
Please refer to the document for exact specifications by model.
Additional preview pages of the CT45 datasheet.

CT45 Product details

Description

I 75 Average Rectified Current F(AV) IFRM 200 Peak Rectified Current PTA Power Dissipation At TA=25ºC 500 2.86 Derating Factor Tj, Tstg Operating And Storage Junction -65 to +200 Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise) Max Reverse DEVICE Peak Inverse Min Forward Current Current Voltage I R @ VR IF @ 1V PIV (mA) (V) (µ A) 10 CT40 25 0.1 10 CT41 40 0.1 CT42 50 10 0.1 10 CT43 75 5.0 10 CT44 100 5.0 20 CT45 25 0.1 20 CT46 40 0.1 20 CT47 50 0.1 20 CT48 75 5.0

Features
