CT453 - Contactless Current Sensor

Allegro

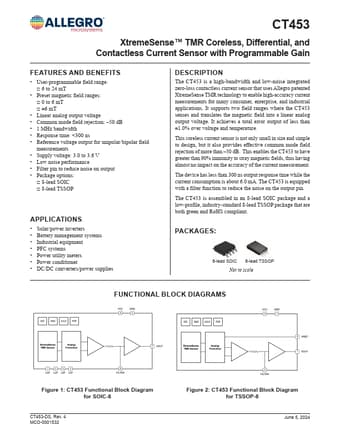

The CT453 by Allegro is a Contactless Current Sensor. Below is the official datasheet preview.

Datasheet Details

Part number	CT453
Manufacturer	Allegro
File Size	1.63 MB
Description	Contactless Current Sensor
Datasheet	CT453-Allegro.pdf
Additional preview pages of the CT453 datasheet.

CT453 Product details

Description

The CT453 is a high-bandwidth and low-noise integrated zero-loss contactless current sensor that uses Allegro patented XtremeSense TMR technology to enable high-accuracy current measurements for many consumer, enterprise, and industrial applications.

Features

User-programmable field range:.
6 to 24 mT.
Preset magnetic field ranges:.
0 to 6 mT.
±6 mT.
Linear analog output voltage.
Common mode field rejection:.
50 dB.
1 MHz bandwidth.
Response time:.
