CT416

The CT416 is TMR Current Sensor designed by Allegro.

Product Overview

Allegro

Datasheet Details

Part number	CT416
Manufacturer	Allegro
File Size	1.43 MB
Description	TMR Current Sensor
Datasheet	CT416-Allegro.pdf

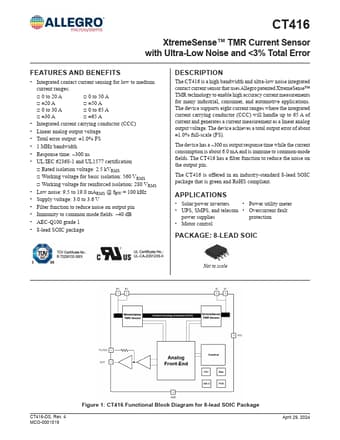

Additional preview pages of the CT416 datasheet.

Product details

Description

The CT416 is a high bandwidth and ultra-low noise integrated contact current sensor that uses Allegro patented XtremeSense™ TMR technology to enable high accuracy current measurements for many industrial, consumer, and automotive applications.

Features

Integrated contact current sensing for low to medium current ranges:.
0 to 20 A.
0 to 50 A.
±20 A.
±50 A.
0 to 30 A.
0 to 65 A.
±30 A.
±65 A.
Integrated current carrying conductor (CCC).
Linear analog output voltage.
Total error output: ±1.0% FS.
1 MHz bandwidth.
Response time: ~300 ns.
UL/IEC 62368-1 and UL1577 certification.
Rated isolati.
