CT428 - TMR Current Sensor

Description

The CT428 is a high bandwidth and ultra-low noise integrated contact current sensor that uses Allegro patented XtremeSense™ TMR technology to enable high accuracy current measurements for many industrial, consumer, and automotive applications.

Features

  • Integrated contact current sensing for low to medium current ranges:.
  • 0 to 20 A.
  • 0 to 50 A.
  • ±20 A.
  • ±50 A.
  • 0 to 30 A.
  • 0 to 65 A.
  • ±30 A.
  • ±65 A.
  • Integrated current carrying conductor (CCC).
  • Linear analog output voltage.
  • Total error output ≤ ±1.0% FS.
  • 1 MHz bandwidth.
  • Response time: ~300 ns.
  • UL/IEC 62368-1 and UL1577 certification.
  • Rated iso.

📥 Download Datasheet

Datasheet Details

Part number CT428
Manufacturer Allegro
File Size 1.60 MB
Description TMR Current Sensor
Datasheet download datasheet CT428 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CT42 HIGH SPEED SILICON SWITCHING DIODE Continental Device India Limited
CT40 HIGH SPEED SILICON SWITCHING DIODE AXIAL LEAD Continental Device India Limited
CT40KM-8H Nch IGBT Renesas
CT40TMH-8 STROBE FLASHER USE Mitsubishi Electric Semiconductor
CT40TMH-8 STROBE FLASHER USE Powerex Power Semiconductors

Other Datasheets by Allegro

Part Number Description
CT425 TMR Current Sensor
CT426 TMR Current Sensor
CT427 TMR Current Sensor
CT415 TMR Current Sensor
CT416 TMR Current Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

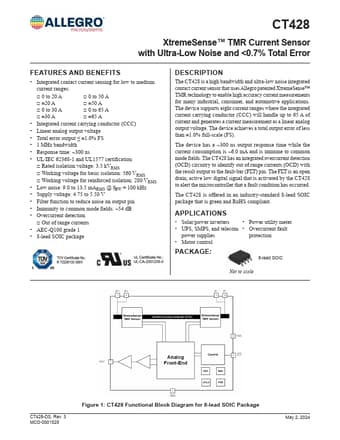

CT428 XtremeSense™ TMR Current Sensor with Ultra-Low Noise and <0.7% Total Error FEATURES AND BENEFITS • Integrated contact current sensing for low to medium current ranges: □ 0 to 20 A □ 0 to 50 A □ ±20 A □ ±50 A □ 0 to 30 A □ 0 to 65 A □ ±30 A □ ±65 A • Integrated current carrying conductor (CCC) • Linear analog output voltage • Total error output ≤ ±1.0% FS • 1 MHz bandwidth • Response time: ~300 ns • UL/IEC 62368-1 and UL1577 certification □ Rated isolation voltage: 3.5 kVRMS □ Working voltage for basic isolation: 560 VRMS □ Working voltage for reinforced isolation: 280 VRMS • Low noise: 9.0 to 13.5 mARMS @ fBW = 100 kHz • Supply voltage: 4.75 to 5.
