CT450 - TMR Contactless Current Sensor

Allegro

The CT450 by Allegro is a TMR Contactless Current Sensor. Below is the official datasheet preview.

Datasheet Details

Part number	CT450
Manufacturer	Allegro
File Size	2.07 MB
Description	TMR Contactless Current Sensor
Datasheet	CT450-Allegro.pdf

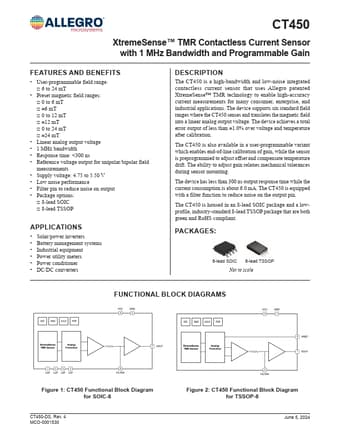

Additional preview pages of the CT450 datasheet.

CT450 Product details

Description

The CT450 is a high-bandwidth and low-noise integrated contactless current sensor that uses Allegro patented XtremeSense™ TMR technology to enable high-accuracy current measurements for many consumer, enterprise, and industrial applications.

Features

User-programmable field range:.
6 to 24 mT.
Preset magnetic field ranges:.
0 to 6 mT.
±6 mT.
0 to 12 mT.
±12 mT.
0 to 24 mT.
±24 mT.
Linear analog output voltage.
1 MHz bandwidth.
Response time:.
