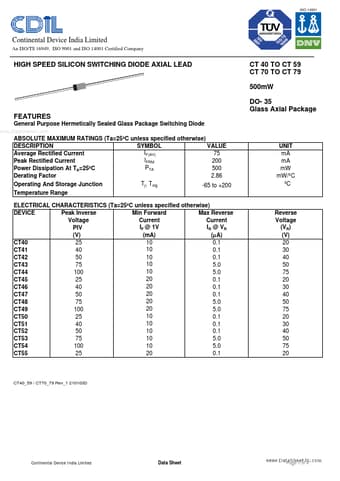

Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
HIGH SPEED SILICON SWITCHING DIODE AXIAL LEAD
CT 40 TO CT 59 CT 70 TO CT 79 500mW DO- 35 Glass Axial Package
FEATURES
General Purpose Hermetically Sealed Glass Package Switching Diode
www.DataSheet4U.com
ABSOLUTE MAXIMUM RATINGS (Ta=25ºC unless specified otherwise) SYMBOL VALUE DESCRIPTION I 75 Average Rectified Current F(AV) IFRM 200 Peak Rectified Current PTA Power Dissipation At TA=25ºC 500 2.86 Derating Factor Tj, Tstg Operating And Storage Junction -65 to +200 Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise) Max Reverse DEVICE Peak Inverse Min Forward Current Current Voltage I R @ VR IF @ 1V PIV (mA) (V) (µ A) 10 CT40 25 0.1 10 CT41 40 0.1 CT42 50 10 0.
CT43 Datasheet
