BAW100G, BAW100 SILICON SWITCHING DIODES

📥 Download Datasheet  Datasheet Preview Page 1

Description

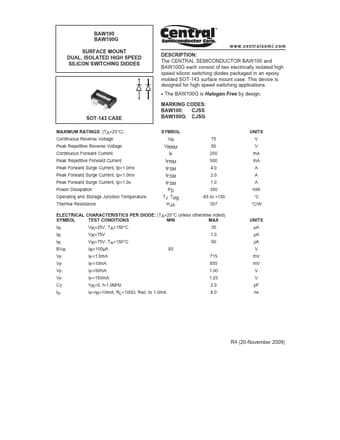

BAW100 BAW100G SURFACE MOUNT DUAL, ISOLATED HIGH SPEED SILICON SWITCHING DIODES SOT-143 CASE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR BAW100 and BAW100G each consist of two electrically isolated high speed silicon switching diodes packaged in an epoxy molde.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAW100G, BAW100. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
BAW100G, BAW100
Manufacturer
Central Semiconductor ↗
File Size
199.09 KB
Datasheet
BAW100-CentralSemiconductor.pdf
Description
SILICON SWITCHING DIODES
Note
This datasheet PDF includes multiple part numbers: BAW100G, BAW100.
Please refer to the document for exact specifications by model.

Applications

* The BAW100G is Halogen Free by design. MARKING CODES: BAW100: CJSS BAW100G: CJSG MAXIMUM RATINGS: (TA=25°C) Continuous Reverse Voltage Peak Repetitive Reverse Voltage Continuous Forward Current Peak Repetitive Forward Current Peak Forward Surge Current, tp=1.0ms Peak Forward Surge Curren
