BAW156 SURFACE MOUNT SWITCHING DIODES

BAW156 Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS BAS116 BAW156 BAV170 BAV199 TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SWITCHING DIODES VOLTAGE - 10.

BAW156 Features

* Surface Mount Package Ideally Suited for Automatic Insertion
* Low power loss, high efficiency
* Low leakage
* Low forward voltage drop
* High current capability MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated

📥 Download Datasheet

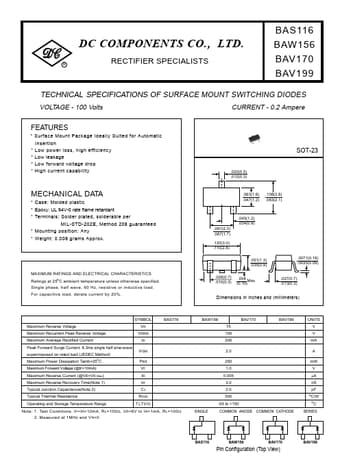

Preview of BAW156 PDF

Datasheet Details

Part number
BAW156
Manufacturer
DC COMPONENTS
File Size
1.30 MB
Datasheet
BAW156-DCCOMPONENTS.pdf
Description
SURFACE MOUNT SWITCHING DIODES
