BAW156L Surface Mount Low Leakge Diode

BAW156L Description

MSV SEMI (S-)BAx116,156,170,199L Surface Mount Low Leakge Diode .

BAW156L Applications

* Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable. MECHANICAL DATA
* Case: SOT-23
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Moisture sensitivity: Level 1 per J-STD-020C
* Terminals: Solderable per MIL-STD-2

📥 Download Datasheet

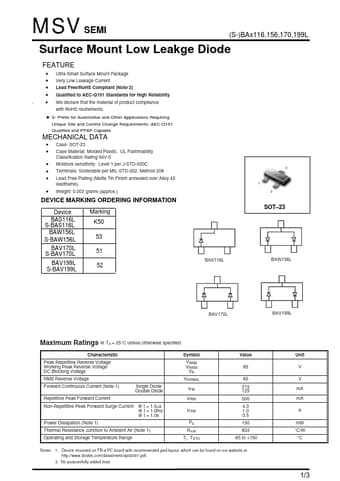

Preview of BAW156L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAW156L
Manufacturer
MSV
File Size
106.45 KB
Datasheet
BAW156L-MSV.pdf
Description
Surface Mount Low Leakge Diode
