MS7N80 - N-Channel MOSFET

Product Overview

Bruckewell

Datasheet Details

Part number	MS7N80
Manufacturer	Bruckewell
File Size	937.79 KB
Description	N-Channel MOSFET
Datasheet	MS7N80 Datasheet

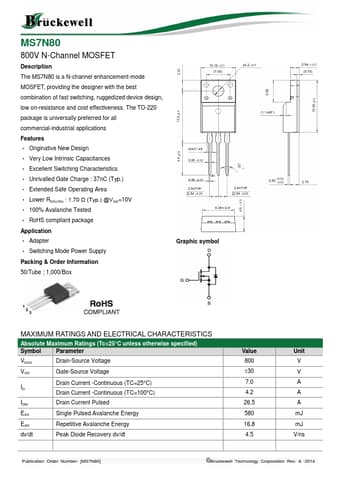

Additional preview pages of the MS7N80 datasheet.

Product details

Description

The MS7N80 is a N-channel enhancement-mode MOSFET, providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness.

Features

Originative New Design.
Very Low Intrinsic Capacitances.
Excellent Switching Characteristics.
Unrivalled Gate Charge : 37nC (Typ. ).
Extended Safe Operating Area.
Lower RDS(ON) : 1.70 Ω (Typ. ) @VGS=10V.
100% Avalanche Tested.
RoHS compliant package.
