AM3865L - P & N-Channel Load Switch MOSFET

📥 Download Datasheet

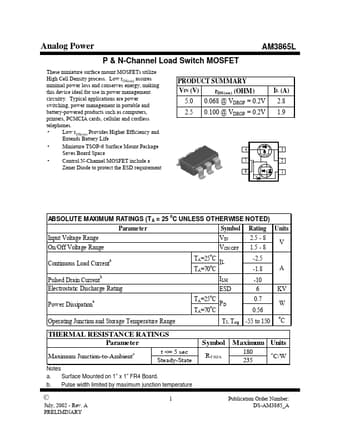

Datasheet preview – AM3865L

Datasheet Details

Part number AM3865L
Manufacturer Analog Power
File Size 175.63 KB
Description P & N-Channel Load Switch MOSFET
Datasheet download datasheet AM3865L Datasheet
Additional preview pages of the AM3865L datasheet.

📁 Similar Datasheet

  • AM386 - Microprocessors (AMD)
  • AM386SC300 - 32-Bit Microprocessor and System Logic (AMD)
  • AM386SX - Embedded Microprocessors (Advanced Micro Devices)
  • AM386SXL - Embedded Microprocessors (AMD)
  • AM386SXLV - Embedded Microprocessors (AMD)
  • AM3871 - Sitara Processors (Texas Instruments)
  • AM3874 - Sitara Processors (Texas Instruments)
  • AM3892 - Sitara Processors (Texas Instruments)
  • AM3894 - Sitara Processors (Texas Instruments)
  • AM30 - Axial Molded Inductors (Allied Components International)
Other Datasheets by Analog Power

Full PDF Text Transcription

Click to expand full text
Analog Power AM3865L P & N-Channel Load Switch MOSFET These miniature surface mount MOSFETs utilize High Cell Density process. Low rDS(on) assures minimal power loss and conserves energy, making this device ideal for use in power management circuitry. Typical applications are power switching, power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. • Low rDS(on) Provides Higher Efficiency and Extends Battery Life • Miniature TSOP-6 Surface Mount Package Saves Board Space • Control N-Channel MOSFET include a Zener Diode to protect the ESD requirement PRODUCT SUMMARY VIN (V) rDS(on) (OHM) 5.0 0.068 @ VDROP = 0.2V 2.5 0.100 @ VDROP = 0.2V 4 5 6 IL (A) 2.8 1.
