AM3826N - N-Channel MOSFET

📥 Download Datasheet

Datasheet Details

Part number AM3826N
Manufacturer Analog Power
File Size 275.07 KB
Description N-Channel MOSFET
Datasheet download datasheet AM3826N Datasheet

📁 Similar Datasheet

  • AM386 - Microprocessors (AMD)
  • AM386SC300 - 32-Bit Microprocessor and System Logic (AMD)
  • AM386SX - Embedded Microprocessors (Advanced Micro Devices)
  • AM386SXL - Embedded Microprocessors (AMD)
  • AM386SXLV - Embedded Microprocessors (AMD)
  • AM3871 - Sitara Processors (Texas Instruments)
  • AM3874 - Sitara Processors (Texas Instruments)
  • AM3892 - Sitara Processors (Texas Instruments)
  • AM3894 - Sitara Processors (Texas Instruments)
  • AM30 - Axial Molded Inductors (Allied Components International)
Other Datasheets by Analog Power

Full PDF Text Transcription

Click to expand full text

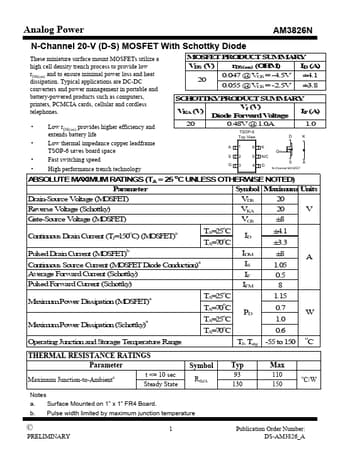

Analog Power AM3826N N-Channel 20-V (D-S) MOSFET With Schottky Diode These miniature surface mount MOSFETs utilize a high cell density trench process to provide low rDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and MOSFET PRODUCT SUMMARY VDS (V) rDS(on) (OHM) ID (A) 20 0.047 @VGS = -4.5V ±4.1 0.055 @VGS = -2.5V ±3.8 battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. SCHOTTKY PRODUCT SUMMARY VKA (V) Vf (V) Diode Forward Voltage IF (A) • Low rDS(on) provides higher efficiency and extends battery life 20 0.48V @ 1.0A TSOP-6 Top View 1.
