AM3836N N-Channel MOSFET

AM3836N Description

Analog Power AM3836N N-Channel 30-V (D-S) MOSFET With Schottky Diode These miniature surface mount MOSFETs utilize a high cell density trench proce.

AM3836N Applications

* are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. PRODUCT SUMMARY VDS (V) rDS(on) m(Ω) 30 63 @ VGS = 4.5V 110 @ VGS = 2.5V ID (A) 3.5 3.0 SCHOTTKY PRODUCT SUMMARY VKA (V) Vf (V) Di

📥 Download Datasheet

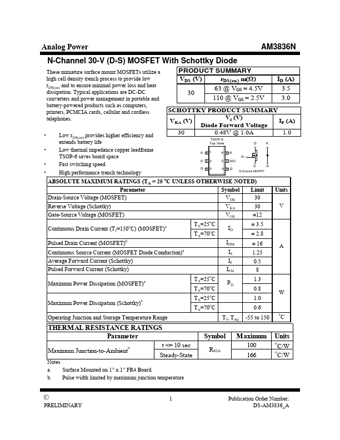

Preview of AM3836N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AM3836N
Manufacturer
Analog Power
File Size
160.74 KB
Datasheet
AM3836N-AnalogPower.pdf
Description
N-Channel MOSFET
