AM3808NE MOSFET

AM3808NE Description

Analog Power AM3808NE Dual N-Channel 20-V (D-S) MOSFET Key .

AM3808NE Features

* Low rDS(on) trench technology
* Low thermal impedance

AM3808NE Applications

* Battery Powered Instruments
* Portable Computing
* Mobile Phones
* GPS Units and Media Players PRODUCT SUMMARY rDS(on) (mΩ) 20 @ VGS = 4.5V 28 @ VGS = 2.5V VDS (V) 20 ID(A) 6 5 ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED) Parameter Symbol Limit VD

📥 Download Datasheet

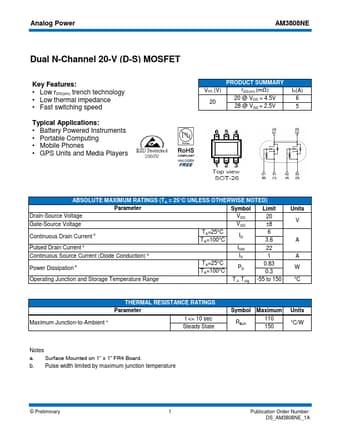

Preview of AM3808NE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AM3808NE
Manufacturer
Analog Power
File Size
500.27 KB
Datasheet
AM3808NE_AnalogPower.pdf
Description
MOSFET
