LTC6952 - Ultralow Jitter / 4.5GHz PLL

Analog Devices

📥 Download Datasheet

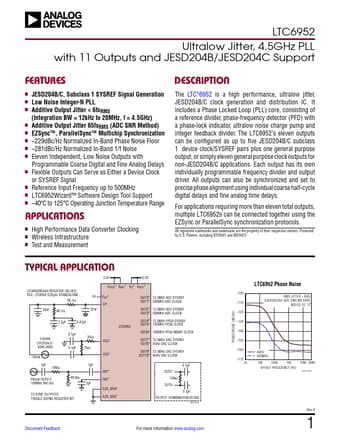

LTC6952 Datasheet Preview — Preview of LTC6952 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LTC6952
Manufacturer	Analog Devices
File Size	3.00 MB
Description	Ultralow Jitter / 4.5GHz PLL
Datasheet	LTC6952-AnalogDevices.pdf

LTC6952 Product details

Description

The LTC®6952 is a high performance, ultralow jitter, JESD204B/C clock generation and distribution IC.

Features

nn JESD204B/C, Subclass 1 SYSREF Signal Generation nn Low Noise Integer-N PLL nn Additive Output Jitter < 6fsRMS (Integration BW = 12kHz to 20MHz, f = 4.5GHz) nn Additive Output Jitter 65fsRMS (ADC SNR Method) nn EZSync™, ParallelSync™ Multichip Synchronization nn.
229dBc/Hz Normalized In-Band Phase Noise Floor nn.
281dBc/Hz Normalized In-Band 1/f Noise nn Eleven Independent, Low Noise Outputs with Programmable Coarse Digital and Fine Analog Delays nn Flexible Outputs Can Serve a.
