LTC6908-2, LTC6908-1 - Resistor Set SOT-23 Oscillator

Analog Devices

Datasheet Details

Part number	LTC6908-2, LTC6908-1
Manufacturer	Analog Devices
File Size	569.27 KB
Description	Resistor Set SOT-23 Oscillator
Datasheet	LTC6908-1-AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: LTC6908-2, LTC6908-1. Please refer to the document for exact specifications by model.

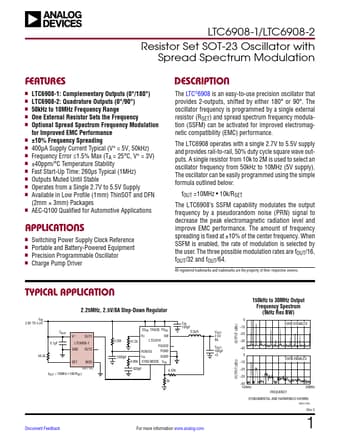

The LTC®6908 is an easy-to-use precision oscillator that provides 2-outputs, shifted by either 180° or 90°.

n LTC6908-1: Complementary Outputs (0°/180°) n LTC6908-2: Quadrature Outputs (0°/90°) n 50kHz to 10MHz Frequency Range n One External Resistor Sets the Frequency n Optional Spread Spectrum Frequency Modulation for Improved EMC Performance n ±10% Frequency Spreading n 400µA Supply Current Typical (V+ = 5V, 50kHz) n Frequency Error ≤1.5% Max (TA = 25°C, V+ = 3V) n ±40ppm/°C Temperature Stability n Fast Start-Up Time: 260µs Typical (1MHz) n Outputs Muted Until Stable n Operates from a Single 2.7V t.
