AD7153 - 12-Bit Capacitance-to-Digital Converter

Product Overview

Analog Devices

Part number	AD7153
Manufacturer	Analog Devices
File Size	478.33 KB
Description	12-Bit Capacitance-to-Digital Converter
Datasheet	AD7153 Datasheet
Note	This datasheet PDF includes multiple part numbers: AD7153, AD7152. Please refer to the document for exact specifications by model.
Additional preview pages of the AD7153 datasheet.

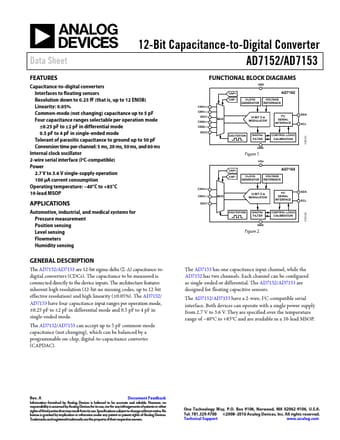

Capacitance-to-digital converters Interfaces to floating sensors Resolution down to 0.25 fF (that is, up to 12 ENOB) Linearity: 0.05% Common-mode (not changing) capacitance up to 5 pF Four capacitance ranges selectable per operation mode ±0.25 pF to ±2 pF in differential mode 0.5 pF to 4 pF in single-ended mode Tolerant of parasitic capacitance to ground up to 50 pF Conversion time per channel: 5 ms, 20 ms, 50 ms, and 60 ms Internal clock oscillator 2-wire serial interface (I2C-compatible) Power.
