AD7150 - Capacitance Converter

Product Overview

Analog Devices

Datasheet Details

Part number	AD7150
Manufacturer	Analog Devices
File Size	367.33 KB
Description	Capacitance Converter
Datasheet	AD7150 Datasheet

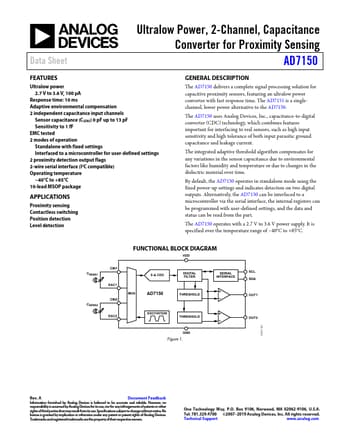

Additional preview pages of the AD7150 datasheet.

Product details

Description

The AD7150 delivers a complete signal processing solution for capacitive proximity sensors, featuring an ultralow power converter with fast response time.

Features

Ultralow power 2.7 V to 3.6 V, 100 μA Response time: 10 ms Adaptive environmental compensation 2 independent capacitance input channels Sensor capacitance (CSENS) 0 pF up to 13 pF Sensitivity to 1 fF EMC tested 2 modes of operation Standalone with fixed settings Interfaced to a microcontroller for user-defined settings 2 proximity detection output flags 2-wire serial interface (I2C compatible) Operating temperature.
40°C to +85°C 10-lead MSOP package.
