AD7156 - 2-Channel Capacitance Converter

Product Overview

Analog Devices

Part number	AD7156
Manufacturer	Analog Devices
File Size	435.35 KB
Description	2-Channel Capacitance Converter
Datasheet	AD7156 Datasheet

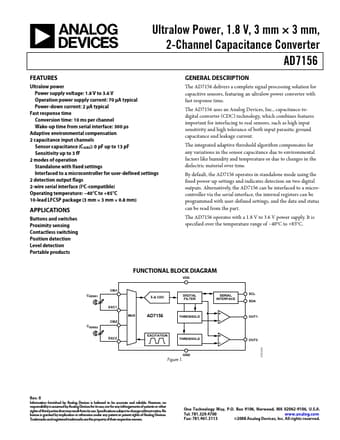

Additional preview pages of the AD7156 datasheet.

The AD7156 delivers a complete signal processing solution for capacitive sensors, featuring an ultralow power converter with fast respons

Ultralow power Power supply voltage: 1.8 V to 3.6 V Operation power supply current: 70 μA typical Power-down current: 2 μA typical Fast response time Conversion time: 10 ms per channel Wake-up time from serial interface: 300 μs Adaptive environmental compensation 2 capacitance input channels Sensor capacitance (CSENS): 0 pF up to 13 pF Sensitivity up to 3 fF 2 modes of operation Standalone with fixed settings Interfaced to a microcontroller for user-defined settings 2 detection output flags 2-wi.
