AP1516 3A PWM Buck DC/DC Converter

AP1516 Description

AP1516 150KHz, 3A PWM Buck DC/DC Converter + 1A Ultra Low Drop Regulator * .
The Channel 1 is a step-down DC/DC converter, and own the ability of driving a 3A load without additional transistor component.

AP1516 Features

* Channel 1: simple switch - Adjustable version output voltage range, 1.23V to 18V+4% & Fixed 3.3V version - 150KHz +20% fixed switching frequency - Voltage mode non-synchronous PWM control - ON/OFF shutdown control input - Operating voltage can be up to 20V - Output load current: 3A - Low power

AP1516 Applications

* requiring 2.8V or lower voltages from 3.3V power supplies where high efficiency of a switcher can be achieved without the cost and complexity associated with switching regulator.
* Applications - PC Motherboard - LCD Monitor - Graphic Card - DVD-Video Player - NIC/Switch - Telecom Equipment

📥 Download Datasheet

Preview of AP1516 PDF

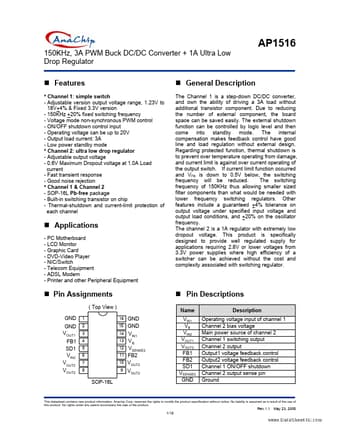

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP1516
Manufacturer
Anachip
File Size
208.47 KB
Datasheet
AP1516_Anachip.pdf
Description
3A PWM Buck DC/DC Converter
