AP1512A, AP1512 2A/3A PWM Buck DC/DC Converter

AP1512A Description

AP1512/A 50KHz, 2A/3A PWM Buck DC/DC Converter * .
The AP1512/A is a monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 2A (3A for AP1512A) load without additio.

AP1512A Features

* - Output voltage: 3.3V, 5V, 12V and adjustable output version - Adjustable version output voltage range, 1.23V to 37V+4% - 50KHz +15% fixed switching frequency - Voltage mode non-synchronous PWM control - Thermal-shutdown and current-limit protection - ON/OFF shutdown control input - Operating volta

AP1512A Applications

* - Simple High-efficiency step-down regulator - On-card switching regulators - Positive to negative converter
* Pin Assignments ( Top View ) 5 SD 4 FB 3 Gnd 2 Output 1 VIN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AP1512A, AP1512. Please refer to the document for exact specifications by model.

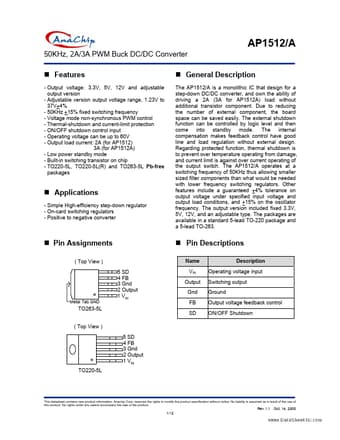

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP1512A, AP1512
Manufacturer
Anachip
File Size
227.80 KB
Datasheet
AP1512_Anachip.pdf
Description
2A/3A PWM Buck DC/DC Converter
Note
This datasheet PDF includes multiple part numbers: AP1512A, AP1512.
Please refer to the document for exact specifications by model.
