AP1511 PWM Control 5A Step-Down Converter

AP1511 Description

www.DataSheet4U.com AP1511 PWM Control 5A Step-Down Converter * .
AP1511 consists of step-down switching regulator with PWM control.

AP1511 Features

* - Input voltage: 3.6V to 23V. - Output voltage: 0.8V to VCC. - Duty ratio: 0% to 100% PWM control - Oscillation frequency: 300KHz typ. - Soft-start, Current limit, Enable function - Thermal Shutdown function - Built-in internal SW P-channel MOS - SOP-16L Pb-Free Package.
* General Descripti

AP1511 Applications

* -Microprocessor core supply -Networking power supply -LCD MNT, TV power supply -Telecom power supply
* Pin Assignments

📥 Download Datasheet

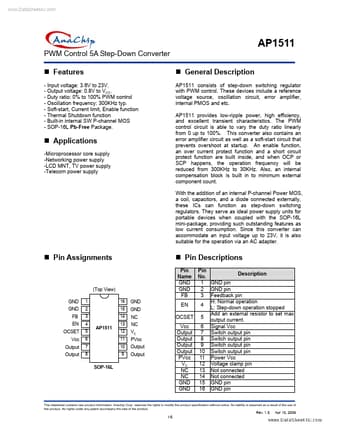

Preview of AP1511 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP1511
Manufacturer
Anachip Corporation
File Size
200.09 KB
Datasheet
AP1511_AnachipCorporation.pdf
Description
PWM Control 5A Step-Down Converter
