AP1513 - PWM Control 2A Step-Down Converter

Description

AP1513 consists of step-down switching regulator with PWM control.

These devices include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc.

AP1513 provides low-ripple power, high efficiency, and excellent transient characteristics.

Features

  • s - Input voltage: 3.6V to 18V. - Output voltage: 0.8V to VCC. - Duty ratio: 0% to 100% PWM control - Oscillation frequency: 300KHz typ. - Soft-start, Current limit, Enable function - Thermal Shutdown function - Built-in internal SW P-channel MOS - SOP-8L Pb-Free Package.
  • General.

📥 Download Datasheet

Datasheet Details

Part number AP1513
Manufacturer Anachip
File Size 211.79 KB
Description PWM Control 2A Step-Down Converter
Datasheet download datasheet AP1513 Datasheet

📁 Similar Datasheet

  • AP1513 - PWM CONTROL 2A STEP-DOWN CONVERTER (Diodes Incorporated)
  • AP1510 - PWM CONTROL 3A STEP-DOWN CONVERTER (Diodes Incorporated)
  • AP1511 - PWM Control 5A Step-Down Converter (Anachip Corporation)
  • AP1511 - PWM CONTROL 5A STEP-DOWN CONVERTER (Diodes)
  • AP1512 - 2A/3A PWM BUCK DC/DC CONVERTER (Diodes)
  • AP1512A - 2A/3A PWM BUCK DC/DC CONVERTER (Diodes)
  • AP1501 - 3A PWM BUCK DC/DC CONVERTER (Diodes Incorporated)
  • AP1501A - 5A PWM BUCK DC/DC CONVERTER (Diodes)
  • AP1504MT - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP1505 - SINGLE END VOLTAGE MODE PWM CONTROLLER (ETC)
Other Datasheets by Anachip
  • AP1510 - PWM Control 3A Step-Down Converter
  • AP1512 - 2A/3A PWM Buck DC/DC Converter
  • AP1512A - 2A/3A PWM Buck DC/DC Converter
  • AP1515 - 1.5A PWM Buck DC/DC Converter
  • AP1516 - 3A PWM Buck DC/DC Converter
  • AP1518 - PWM Buck DC/DC Converter
  • AP1519 - PWM Buck DC/DC Converter
  • AP1501 - 3A PWM Buck DC/DC Converter

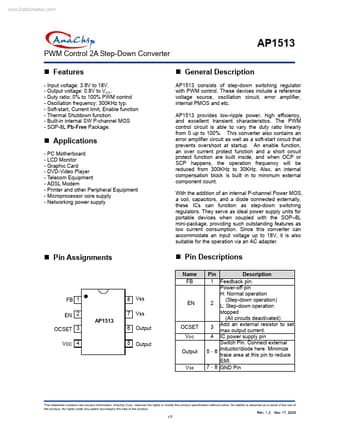

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com AP1513 PWM Control 2A Step-Down Converter „ Features - Input voltage: 3.6V to 18V. - Output voltage: 0.8V to VCC. - Duty ratio: 0% to 100% PWM control - Oscillation frequency: 300KHz typ. - Soft-start, Current limit, Enable function - Thermal Shutdown function - Built-in internal SW P-channel MOS - SOP-8L Pb-Free Package. „ General Description AP1513 consists of step-down switching regulator with PWM control. These devices include a reference voltage source, oscillation circuit, error amplifier, internal PMOS and etc. AP1513 provides low-ripple power, high efficiency, and excellent transient characteristics. The PWM control circuit is able to vary the duty ratio linearly from 0 up to 100%.
