BLF6G22L-40BN - Power LDMOS transistor

Ampleon

📥 Download Datasheet

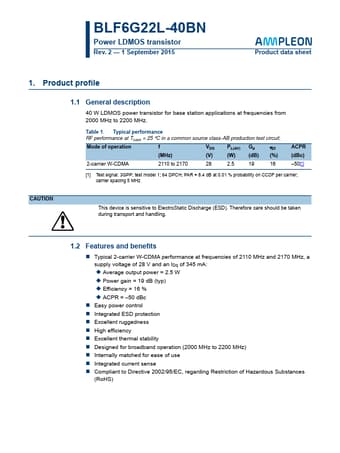

BLF6G22L-40BN Datasheet Preview — Preview of BLF6G22L-40BN PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BLF6G22L-40BN
Manufacturer	Ampleon
File Size	344.88 KB
Description	Power LDMOS transistor
Datasheet	BLF6G22L-40BN-Ampleon.pdf

BLF6G22L-40BN Product details

Description

40 W LDMOS power transistor for base station applications at frequencies from 2000 MHz to 2200 MHz.

Features

Typical 2-carrier W-CDMA performance at frequencies of 2110 MHz and 2170 MHz, a supply voltage of 28 V and an IDq of 345 mA:.
Average output power = 2.5 W.
Power gain = 19 dB (typ).
Efficiency = 16 %.
ACPR = 50 dBc.
Easy power control.
Integrated ESD protection.
Excellent ruggedness.
High efficiency.
Excellent thermal stability.
Designed for broadband operation (2000 MHz to 2200 MHz).
Internally matched for ease of use.
Integrate.
