AOZ5016QI DrMOS Power Module

AOZ5016QI Description

AOZ5016QI High-Current, High-Performance DrMOS Power Module General .
AOZ5016QI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

AOZ5016QI Features

* are provided making the AOZ5016QI a highly versatile power module. The bootstrap diode is integrated in the driver. The Low-Side MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve light-load performance. The pin-out is also optimized for low parasitics, keep

AOZ5016QI Applications

* Memory and graphic cards
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming consoles Typical Application Circuit FCCM PWM Controller PWM Driver Logic and Delay VCC CVCC 5V VIN BOOT HS Driver CBOOT PHASE VSWH LS Driver GL PVCC PGND CPVCC 4.5V ~ 25V

📥 Download Datasheet

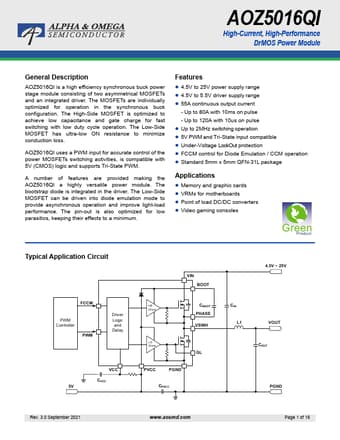

Preview of AOZ5016QI PDF
