AOZ5008AQI High-Performance DrMOS Power Module

AOZ5008AQI Description

AOZ5008AQI High-Current, High-Performance DrMOS Power Module General .
AOZ5008AQI is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

AOZ5008AQI Features

* are provided making the AOZ5008AQI a highly versatile power module. The bootstrap diode is integrated in the driver. The Low-Side MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve light-load performance. The pin-out is also optimized for low parasitics, kee

AOZ5008AQI Applications

* Memory and graphic cards
* VRMs for motherboards
* Point of load DC/DC converters
* Video gaming console Typical Application Circuit FCCM PWM Controller PWM Driver Logic and Delay VCC CVCC 5V VIN BOOT HS Driver CBOOT PHASE VSWH LS Driver GL PVCC PGND CPVCC 4.5V ~ 25V

📥 Download Datasheet

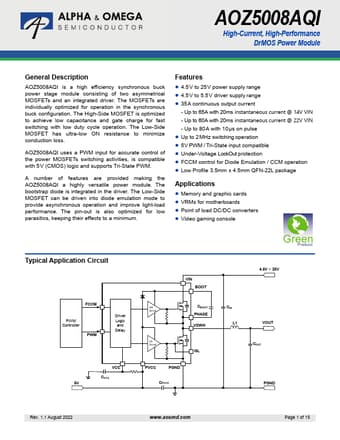

Preview of AOZ5008AQI PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AOZ5008AQI
Manufacturer
Alpha & Omega Semiconductors
File Size
1.40 MB
Datasheet
AOZ5008AQI-AlphaOmegaSemiconductors.pdf
Description
High-Performance DrMOS Power Module
