AP6680BGMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP6680BGMT Description

Advanced Power Electronics Corp.AP6680BGMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ SO-8 Compatibl.
S AP6680B series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switch.

AP6680BGMT Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) ID 30V 9mΩ 41.4A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings . Symbol Parameter VDS VGS ID@TC=25℃ ID@TA=25℃ ID@TA=

📥 Download Datasheet

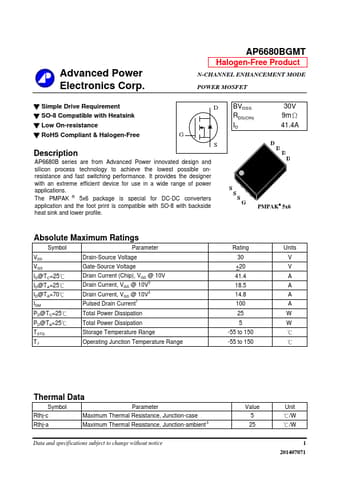

Preview of AP6680BGMT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP6680BGMT
Manufacturer
Advanced Power Electronics
File Size
69.45 KB
Datasheet
AP6680BGMT-AdvancedPowerElectronics.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
