AP6679BGM P-Channel 30V MOSFET

VBsemi

AP6679BGM Description

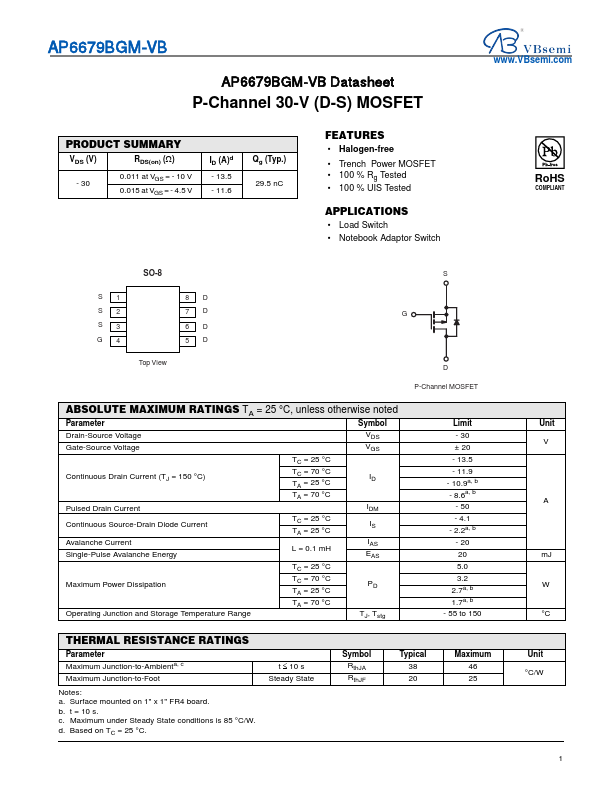

AP6679BGM-VB AP6679BGM-VB Datasheet P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.011 at VGS = - 10 V 0.015 at VGS = -.

AP6679BGM Features

* Halogen-free
* Trench Power MOSFET
* 100 % Rg Tested

AP6679BGM Applications

* Load Switch
* Notebook Adaptor Switch www. VBsemi. com RoHS COMPLIANT SO-8 S S1 8D S2 7D G S3 6D G4 5D Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC =

📥 Download Datasheet

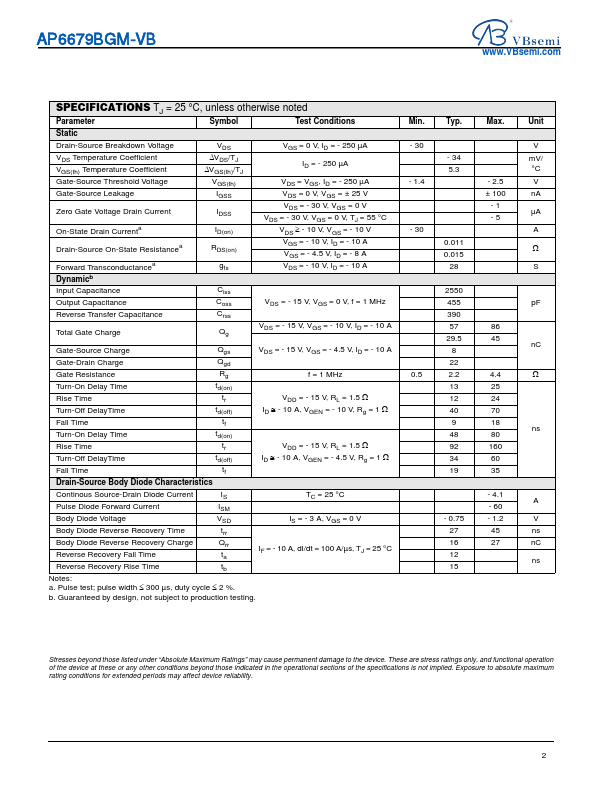

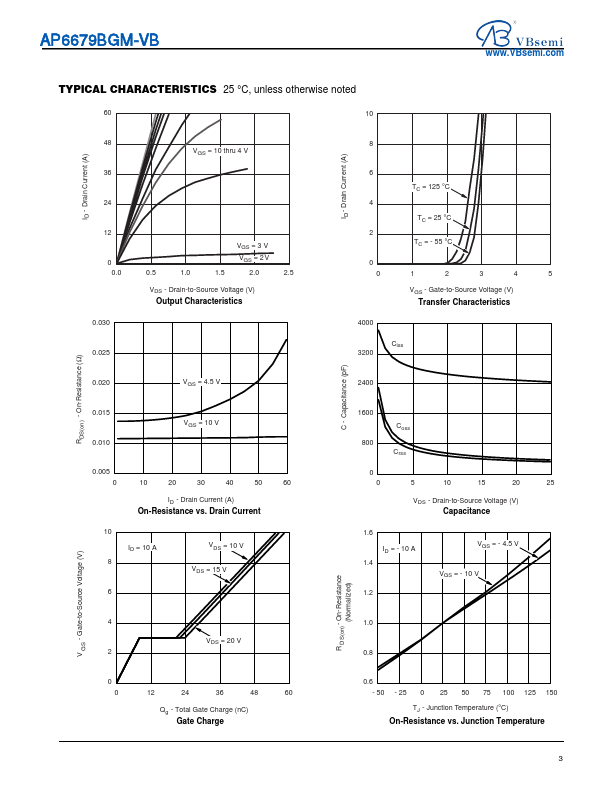

AP6679BGM Datasheet Preview — Preview of AP6679BGM PDF

Datasheet Details

Part number: AP6679BGM
Manufacturer: VBsemi
File Size: 181.32 KB
Datasheet: AP6679BGM-VBsemi.pdf
Description: P-Channel 30V MOSFET
