AP6680AGM-HF N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP6680AGM-HF Description

Advanced Power Electronics Corp.AP6680AGM-HF Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-Resistance ▼ Simple Drive Requir.
AP6680A series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching.

AP6680AGM-HF Applications

* The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. D S BVDSS RDS(ON) ID D D D D SO-8 30V 11mΩ 12A G S S S Absolute Maximum Ratings@Tj=25o. C(unless otherwise specif

📥 Download Datasheet

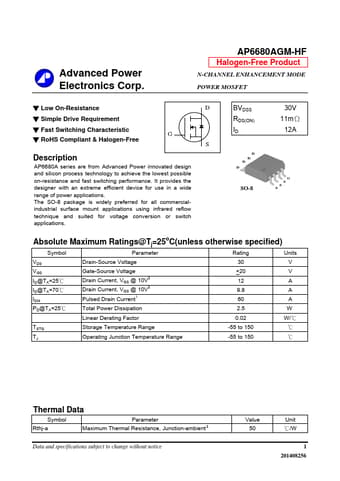

Preview of AP6680AGM-HF PDF
datasheet Preview Page 2 datasheet Preview Page 3
