AX1117A 1A Low Dropout Linear Regulator

AX1117A Description

AX1117A 1A Low Dropout Linear Regulator  GENERAL .
AX1117A is a low dropout positive adjustable or fixed-mode regulator with minimum of 1A output current capability.

AX1117A Features

* 1.5V maximum dropout at full load current Fast transient response Output current limiting Built-in thermal shutdown Good noise rejection Low-ESR Ceramic Capacitor (MLCC) Required for Stability. 3-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V, 3.3V, 5.0V Packages: SOT223, TO252.  BLOCK DIAGRAM VÛm

AX1117A Applications

* such as high-speed bus termination and low current 3.3V logic supply. AX1117A is also well suited for other applications such as VGA cards. AX1117A is guaranteed to have lower than 1.4V dropout at full load current making it ideal to provide well-regulated outputs of 1.25 to 5.0 with 6.4V to 12V inp

📥 Download Datasheet

Preview of AX1117A PDF

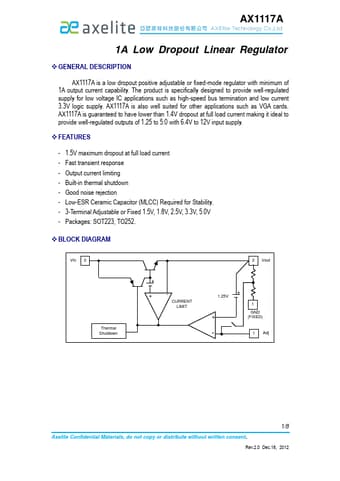

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AX1117A
Manufacturer
AXElite
File Size
261.59 KB
Datasheet
AX1117A-AXElite.pdf
Description
1A Low Dropout Linear Regulator
