AX1110 - 350mA Low Dropout Linear Regulator

Description

AX1110 is a low dropout positive adjustable or fixed-mode regulator with minimum of 350mA output current capability.

The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply.

Features

  • - 1.2V maximum dropout at full load current - Fast transient response - Output Current Limiting - Built-in Thermal Shutdown - Good noise rejection - 3-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V, 3.3V, 5.0V - Packages: SOT-23-3L  BLOCK.

📥 Download Datasheet

Datasheet Details

Part number AX1110
Manufacturer AXElite
File Size 258.75 KB
Description 350mA Low Dropout Linear Regulator
Datasheet download datasheet AX1110 Datasheet

📁 Similar Datasheet

  • AX1117 - 1.2A Low Dropout Positive Voltage Regulator (Avantics)
  • AX11001 - Microcontroller (ASIX)
  • AX11005 - Microcontroller (ASIX)
  • AX11015 - Single Chip Microcontroller (ASIX)
  • AX11025 - Single Chip Microcontroller (ASIX)
  • AX1 - Full Wave Gas Filled Rectifying Valve (Philips)
  • AX1000 - Axcelerator Family FPGAs (Actel)
  • AX1006 - Audio Player Microcontroller (AppoTech)
  • AX100K - Ceramic Composite Resistors (OHMITE)
  • AX1011 - RS422-module (Nedap)
Other Datasheets by AXElite
  • AX1112 - 1.2V 350mA Low Dropout Linear Regulator
  • AX1113 - 400mA Low Dropout Linear Regulator
  • AX1116 - 150mA Ultra Low Dropout Linear Regulator
  • AX1116A - 150mA Ultra Low Dropout Linear Regulator
  • AX1117 - 1A Low Dropout Linear Regulator
  • AX1117A - 1A Low Dropout Linear Regulator
  • AX1120 - Dual 600mA Low Dropout Regulators
  • AX1184 - 4A Ultra Low Dropout Positive Linear Regulator

Full PDF Text Transcription

Click to expand full text

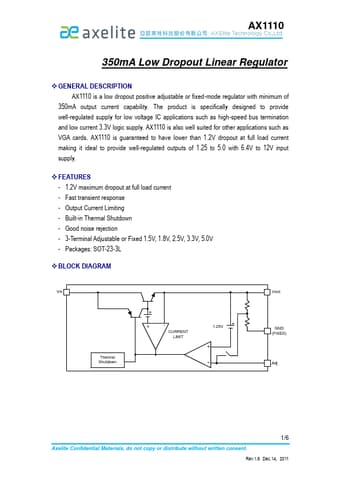

AX1110 350mA Low Dropout Linear Regulator  GENERAL DESCRIPTION AX1110 is a low dropout positive adjustable or fixed-mode regulator with minimum of 350mA output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. AX1110 is also well suited for other applications such as VGA cards. AX1110 is guaranteed to have lower than 1.2V dropout at full load current making it ideal to provide well-regulated outputs of 1.25 to 5.0 with 6.4V to 12V input supply.  FEATURES - 1.2V maximum dropout at full load current - Fast transient response - Output Current Limiting - Built-in Thermal Shutdown - Good noise rejection - 3-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.
