AX1116 150mA Ultra Low Dropout Linear Regulator

AX1116 Description

AX1116 150mA Ultra Low Dropout Linear Regulator  GENERAL .
The AX1116 device is an efficient linear voltage regulator with better than 2% initial voltage accuracy, very low dropout voltage and very low ground.

AX1116 Features

* of the device are: TTL compatible enable/shutdown control input, current limiting and thermal shutdown. The AX1116 is available in fixed and adjustable output voltage versions in a small SOT-23 5-Pin package.  FEATURES Wide Operating range: 2.5V ~ 14V Adjustable and 1.8V, 2.5V, 2.8V, 3.0V, 3.3V fix

📥 Download Datasheet

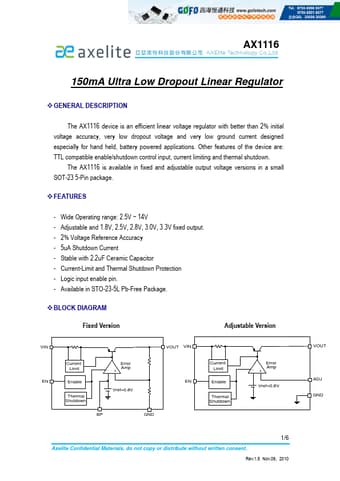

Preview of AX1116 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AX1116
Manufacturer
AXElite
File Size
308.29 KB
Datasheet
AX1116-AXElite.pdf
Description
150mA Ultra Low Dropout Linear Regulator
