AX1116A 150mA Ultra Low Dropout Linear Regulator

AX1116A Description

AX1116A 150mA Ultra Low Dropout Linear Regulator  GENERAL .
The AX1116A device is an efficient linear voltage regulator with better than 2% initial voltage accuracy, very low dropout voltage and very low ground.

AX1116A Features

* of the device are: TTL compatible enable/shutdown control input, current limiting and thermal shutdown. The AX1116A is available adjustable output voltage versions in a small SOT-23 5-Pin package.  FEATURES Wide Operating range: 4.5V ~ 25V Adjustable output. 2% Voltage Reference Accuracy 5uA Shutdo

📥 Download Datasheet

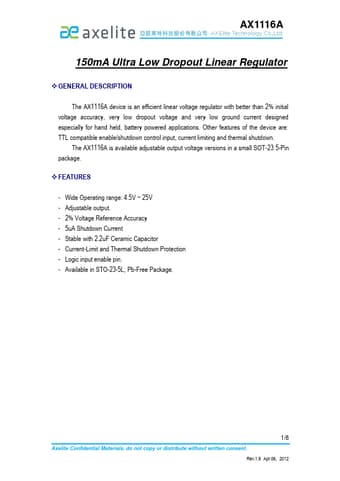

Preview of AX1116A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AX1116A
Manufacturer
AXElite
File Size
385.38 KB
Datasheet
AX1116A-AXElite.pdf
Description
150mA Ultra Low Dropout Linear Regulator
