SUT497H - Epitaxial planar PNP/NPN silicon transistor

AUK

📥 Download Datasheet

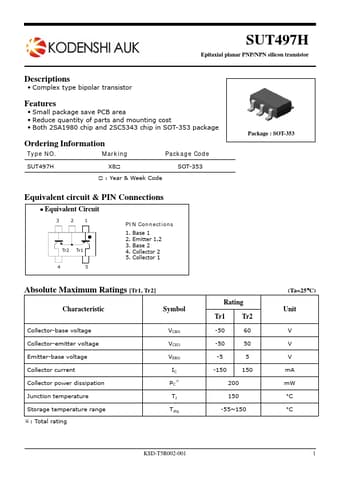

SUT497H Datasheet Preview — Preview of SUT497H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUT497H
Manufacturer	AUK
File Size	323.19 KB
Description	Epitaxial planar PNP/NPN silicon transistor
Datasheet	SUT497H-AUK.pdf

SUT497H Product details

Description

Complex type bipolar transistor

Features

Small package save PCB area.
Reduce quantity of parts and mounting cost.
Both 2SA1980 chip and 2SC5343 chip in SOT-353 package Ordering Information Type NO. Marking Package Code SUT497H X8.
: Year & Week Code SOT-353 Equivalent circuit & PIN Connections.
Equivalent Circuit 3 21 Tr2 Tr1 45 PIN Connections 1. Base 1 2. Emitter 1,2 3. Base 2 4. Collector 2 5. Collector 1 Package : SOT-353 Absolute Maximum Ratings [Tr1, Tr2] Charac.
