SUT460M - Epitaxial planar NPN silicon transistor

AUK

📥 Download Datasheet

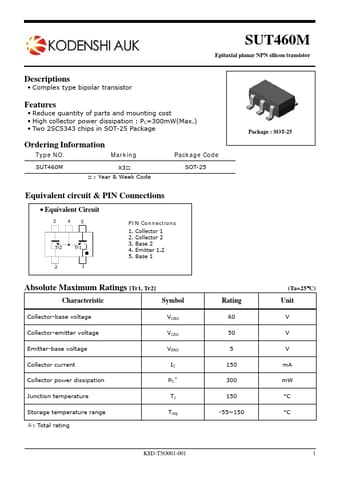

SUT460M Datasheet Preview — Preview of SUT460M PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUT460M
Manufacturer	AUK
File Size	247.25 KB
Description	Epitaxial planar NPN silicon transistor
Datasheet	SUT460M-AUK.pdf

SUT460M Product details

Description

Complex type bipolar transistor

Features

Reduce quantity of parts and mounting cost.
High collector power dissipation : PC=300mW(Max. ).
Two 2SC5343 chips in SOT-25 Package Ordering Information Type NO. Marking SUT460M X3.
: Year & Week Code Package Code SOT-25 Equivalent circuit & PIN Connections.
Equivalent Circuit 3 45 Tr2 Tr1 21 PIN Connections 1. Collector 1 2. Collector 2 3. Base 2 4. Emitter 1,2 5. Base 1 Package : SOT-25 Absolute Maximum Ratings [Tr1, Tr2] Chara.
