SUT462N - Epitaxial planar NPN/PNP silicon transistor

AUK

📥 Download Datasheet

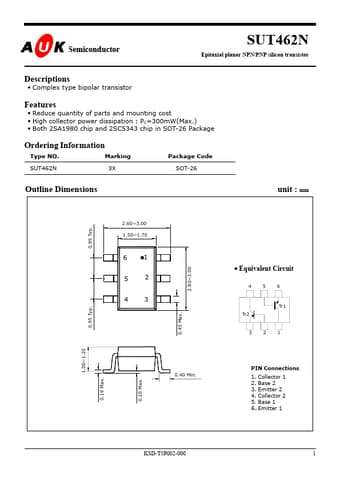

SUT462N Datasheet Preview — Preview of SUT462N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUT462N
Manufacturer	AUK
File Size	282.45 KB
Description	Epitaxial planar NPN/PNP silicon transistor
Datasheet	SUT462N-AUK.pdf

SUT462N Product details

Description

Complex type bipolar transistor

Features

Reduce quantity of parts and mounting cost.
High collector power dissipation : PC=300mW(Max. ).
Both 2SA1980 chip and 2SC5343 chip in SOT-26 Package Ordering Information Type NO. Marking SUT462N 3X Package Code SOT-26 Outline Dimensions unit : mm 0.95 Typ. 2.60~3.00 1.50~1.70 61 52 43 0.45 Max. 2.80~3.00.
Equivalent Circuit 456 Tr1 Tr2 321 0.95 Typ. 1.00~1.20 0.19 Max. 0.10 Max. 0.40 Min. PIN Connections 1. Collector 1 2. Base 2 3. Emitter 2.
