SUT461N - Epitaxial planar NPN silicon transistor

AUK

📥 Download Datasheet

SUT461N Datasheet Preview — Preview of SUT461N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SUT461N
Manufacturer	AUK
File Size	242.59 KB
Description	Epitaxial planar NPN silicon transistor
Datasheet	SUT461N-AUK.pdf

SUT461N Product details

Description

Complex type bipolar transistor

Features

Reduce quantity of parts and mounting cost.
High collector power dissipation : PC=300mW(Max. ).

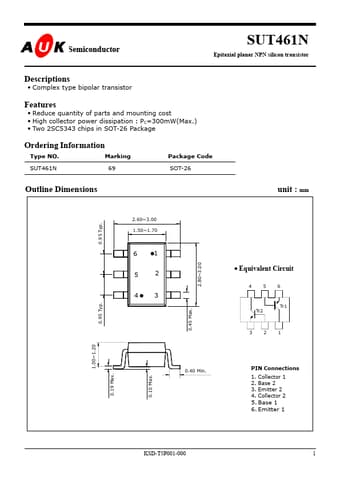

Two 2SC5343 chips in SOT-26 Package Ordering Information Type NO. Marking SUT461N 69 Package Code SOT-26 Outline Dimensions unit : mm 0.95 Typ. 2.60~3.00 1.50~1.70 61 52 43 0.45 Max. 2.80~3.00.
Equivalent Circuit 456 Tr1 Tr2 321 0.95 Typ. 1.00~1.20 0.19 Max. 0.10 Max. 0.40 Min. PIN Connections 1. Collector 1 2. Base 2 3. Emitter 2 4. Collector 2 5.
