AN6033 - High Efficiency PWM Step-Down DC/DC Converter

Datasheet Summary

Features

  • AN6033 is a high efficiency step-down DC/DC.
  • 2.7V to 5.5V Input Voltage Range converter operated with the current mode and the.
  • High Efficiency: Up to 95% constant frequency. The internal switch and.
  • 1.25MHz Constant Switching Frequency synchronous rectifier are integrated for high.
  • 3A Available Load Current efficiency. AN6033 can supply 3A of load current.
  • 100% Duty Cycle in Dropout from 2.7V to 5.5V supply voltage.
  • Current Mode Control The switching freq.

📥 Download Datasheet

Datasheet preview – AN6033

Datasheet Details

Part number AN6033
Manufacturer ANT
File Size 285.54 KB
Description High Efficiency PWM Step-Down DC/DC Converter
Datasheet download datasheet AN6033 Datasheet
Additional preview pages of the AN6033 datasheet.

📁 Similar Datasheet

  • AN603 - Operating ICON H-Bridges in Parallel (Solutions Cubed)
  • AN603 - Designing With the Si9978DW Configurable H-Bridge Controller (Vishay Siliconix)
  • AN601 - Unclamped Inductive Switching Rugged MOSFETs (Vishay Siliconix)
  • AN602 - Driver ICs (Vishay Siliconix)
  • AN6041 - Dual Balanced Modulator (Panasonic)
  • AN605 - Power MOSFET (Vishay)
  • AN606 - Current Sensing Power MOSFETs (Vishay)
  • AN607P - Wide bandwidth video amplifier IC inverting amplifier (Panasonic Semiconductor)
  • AN608P - Wide bandwidth video amplifier IC in-phase amplifier (Panasonic Semiconductor)
  • AN6095SH - Reception IF + transmission quadrature modulation IC for PHS and cellular telephone (Panasonic Semiconductor)
Other Datasheets by ANT
  • AN6006 - High Efficiency PWM Step-Down DC/DC Converter
  • AN6010 - High Efficiency PWM Step-Down DC/DC Converter
  • AN6012 - High Efficiency PWM Step-Down DC/DC Converter
  • AN6359 - Asynchronous Step-Down DC/DC Converter
  • AN6482 - 340KHz Synchronous Step-Down DC/DC Converter
  • AN6484 - 340KHz Synchronous Step-Down DC/DC Converter
  • AN6532 - 125kHz Asynchronous Step-Down Converter
  • AN6533 - 125kHz Asynchronous Step-Down Converter

Full PDF Text Transcription

Click to expand full text

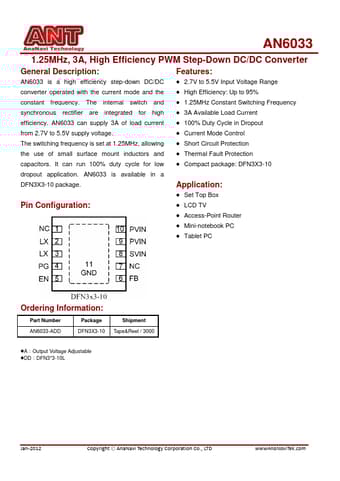

AN6033 1.25MHz, 3A, High Efficiency PWM Step-Down DC/DC Converter General Description: Features: AN6033 is a high efficiency step-down DC/DC 2.7V to 5.5V Input Voltage Range converter operated with the current mode and the High Efficiency: Up to 95% constant frequency. The internal switch and 1.25MHz Constant Switching Frequency synchronous rectifier are integrated for high 3A Available Load Current efficiency. AN6033 can supply 3A of load current 100% Duty Cycle in Dropout from 2.7V to 5.5V supply voltage. Current Mode Control The switching frequency is set at 1.25MHz, allowing Short Circuit Protection the use of small surface mount inductors and Thermal Fault Protection capacitors.
