AN6012 - High Efficiency PWM Step-Down DC/DC Converter

Datasheet Summary

Description

AN6012 is a high efficiency step-down DC/DC converter operated with the current mode and the constant frequency.

The internal switch and synchronous rectifier are integrated for high efficiency.

AN6012 can supply 2A of load current from 2.7V to 5.5V supply voltage.

Features

2.7V.
High to 5.5V Input Voltage Range Efficiency: Up to 95% Constant Switching Frequency.
1.25MHz.
2A Available Load Current Duty Cycle in Dropout Mode Control Circuit Protection.
100%.
Current.
Short.
Thermal Shutdown Protection.
Thermal Enhanced SOP-8 Package.

Datasheet Details

Part number	AN6012
Manufacturer	ANT
File Size	369.04 KB
Description	High Efficiency PWM Step-Down DC/DC Converter
Datasheet	AN6012 Datasheet

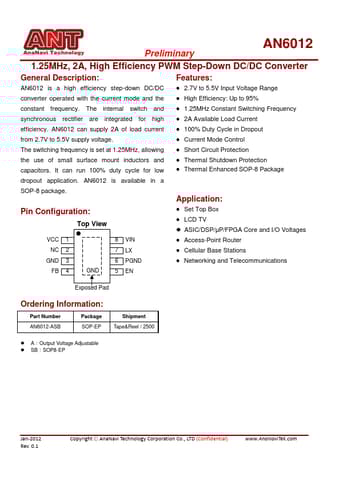

Additional preview pages of the AN6012 datasheet.

📁 Similar Datasheet

AN601 - Unclamped Inductive Switching Rugged MOSFETs (Vishay Siliconix)

AN602 - Driver ICs (Vishay Siliconix)

AN603 - Operating ICON H-Bridges in Parallel (Solutions Cubed)

AN603 - Designing With the Si9978DW Configurable H-Bridge Controller (Vishay Siliconix)

AN6041 - Dual Balanced Modulator (Panasonic)

AN605 - Power MOSFET (Vishay)

AN606 - Current Sensing Power MOSFETs (Vishay)

AN607P - Wide bandwidth video amplifier IC inverting amplifier (Panasonic Semiconductor)

AN608P - Wide bandwidth video amplifier IC in-phase amplifier (Panasonic Semiconductor)

AN6095SH - Reception IF + transmission quadrature modulation IC for PHS and cellular telephone (Panasonic Semiconductor)

Full PDF Text Transcription

Click to expand full text

Preliminary 1.25MHz, 2A, High Efficiency PWM Step-Down DC/DC Converter General Description: AN6012 is a high efficiency step-down DC/DC converter operated with the current mode and the constant frequency. The internal switch and synchronous rectifier are integrated for high efficiency. AN6012 can supply 2A of load current from 2.7V to 5.5V supply voltage. The switching frequency is set at 1.25MHz, allowing the use of small surface mount inductors and capacitors. It can run 100% duty cycle for low dropout application. AN6012 is available in a SOP-8 package. AN6012 Features: 2.7V High to 5.5V Input Voltage Range Efficiency: Up to 95% Constant Switching Frequency 1.
