AN6010 - High Efficiency PWM Step-Down DC/DC Converter

Datasheet Summary

Features

  • 2.5V to 5.5V Input Voltage Range.
  • Adjustable Output Voltage as Low as 0.6V.
  • High Efficiency: Up to 95%.
  • 1.5MHz Constant Switching Frequency.
  • 1.5A Ava.

📥 Download Datasheet

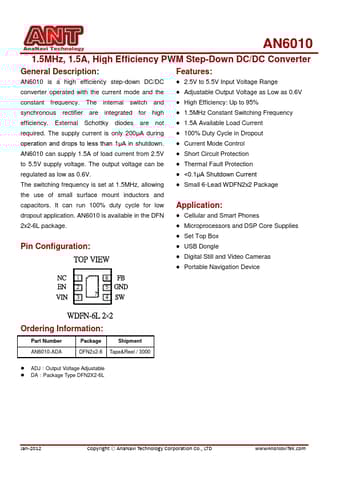

Datasheet preview – AN6010

Datasheet Details

Part number AN6010
Manufacturer ANT
File Size 410.81 KB
Description High Efficiency PWM Step-Down DC/DC Converter
Datasheet download datasheet AN6010 Datasheet
Additional preview pages of the AN6010 datasheet.

📁 Similar Datasheet

  • AN601 - Unclamped Inductive Switching Rugged MOSFETs (Vishay Siliconix)
  • AN602 - Driver ICs (Vishay Siliconix)
  • AN603 - Operating ICON H-Bridges in Parallel (Solutions Cubed)
  • AN603 - Designing With the Si9978DW Configurable H-Bridge Controller (Vishay Siliconix)
  • AN6041 - Dual Balanced Modulator (Panasonic)
  • AN605 - Power MOSFET (Vishay)
  • AN606 - Current Sensing Power MOSFETs (Vishay)
  • AN607P - Wide bandwidth video amplifier IC inverting amplifier (Panasonic Semiconductor)
  • AN608P - Wide bandwidth video amplifier IC in-phase amplifier (Panasonic Semiconductor)
  • AN6095SH - Reception IF + transmission quadrature modulation IC for PHS and cellular telephone (Panasonic Semiconductor)
Other Datasheets by ANT
  • AN6012 - High Efficiency PWM Step-Down DC/DC Converter
  • AN6006 - High Efficiency PWM Step-Down DC/DC Converter
  • AN6033 - High Efficiency PWM Step-Down DC/DC Converter
  • AN6359 - Asynchronous Step-Down DC/DC Converter
  • AN6482 - 340KHz Synchronous Step-Down DC/DC Converter
  • AN6484 - 340KHz Synchronous Step-Down DC/DC Converter
  • AN6532 - 125kHz Asynchronous Step-Down Converter
  • AN6533 - 125kHz Asynchronous Step-Down Converter

Full PDF Text Transcription

Click to expand full text
AN6010 1.5MHz, 1.5A, High Efficiency PWM Step-Down DC/DC Converter GeneCroalnDveesrcterirption: AN6010 is a high efficiency step-down DC/DC converter operated with the current mode and the constant frequency. The internal switch and synchronous rectifier are integrated for high efficiency. External Schottky diodes are not required. The supply current is only 200μA during operation and drops to less than 1μA in shutdown. AN6010 can supply 1.5A of load current from 2.5V to 5.5V supply voltage. The output voltage can be regulated as low as 0.6V. The switching frequency is set at 1.5MHz, allowing the use of small surface mount inductors and capacitors. It can run 100% duty cycle for low dropout application. AN6010 is available in the DFN 2x2‐6L package.
