LMV358A, LMV321A - Micro-Power Rail-to-Rail I/O Op Amps

The LMV358A by 3Peak is a Micro-Power Rail-to-Rail I/O Op Amps. Below is the official datasheet preview.

📥 Download Datasheet

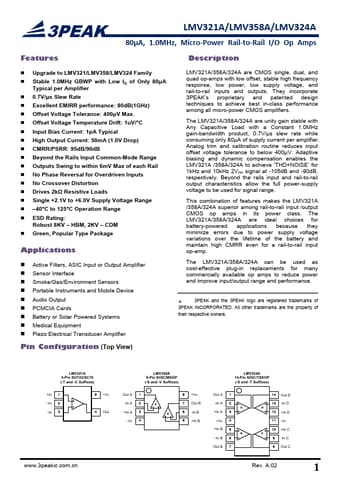

Official preview page of the LMV358A Micro-Power Rail-to-Rail I/O Op Amps datasheet (3Peak).

Datasheet Details

Part number LMV358A, LMV321A
Manufacturer 3Peak
File Size 1.16 MB
Description Micro-Power Rail-to-Rail I/O Op Amps
Datasheet download datasheet LMV321A-3Peak.pdf
Note This datasheet PDF includes multiple part numbers: LMV358A, LMV321A.
Please refer to the document for exact specifications by model.
Additional preview pages of the LMV358A datasheet.

LMV358A Product details

Description

Upgrade to LMV321/LMV358/LMV324 Family Stable 1.0MHz GBWP with Low IQ of Only 80μA Typical per Amplifier 0.7V/μs Slew Rate Excellent EMIRR performance: 80dB(1GHz) Offset Voltage Tolerance: 400μV Max. Offset Voltage Temperature Drift: 1uV/°C Input Bias Current: 1pA Typical High Output Current: 50mA (1.0V Drop) CMRR/PSRR: 95dB/90dB Beyond the Rails Input Common-Mode Range Outputs Swing to within 6mV Max of each Rail No Phase
