LMV358X - 5V 1.5-MHz Op Amp

The LMV358X by 3PEAK is a 5V 1.5-MHz Op Amp. Below is the official datasheet preview.

📥 Download Datasheet

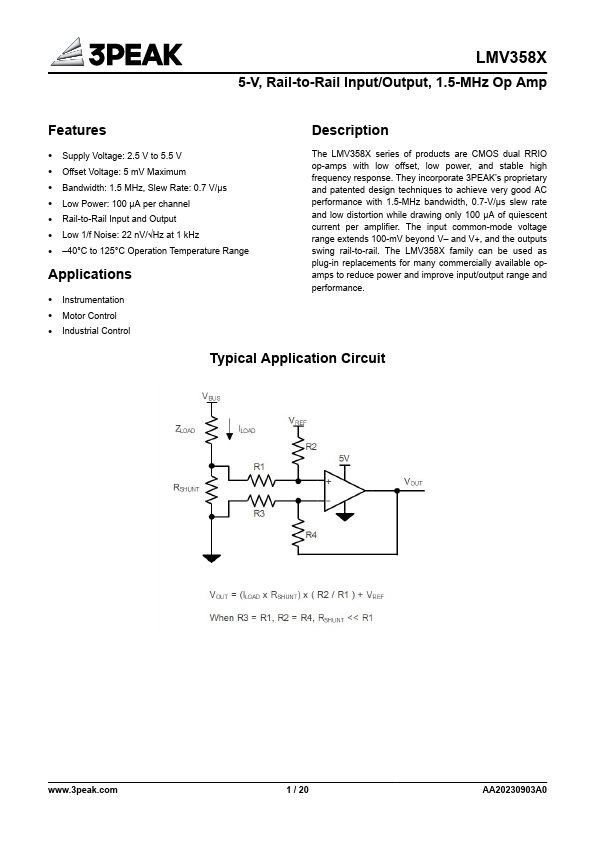

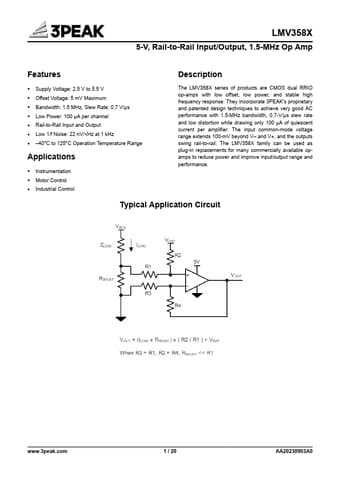

Official preview page of the LMV358X 5V 1.5-MHz Op Amp datasheet (3PEAK).

Datasheet Details

Part number LMV358X
Manufacturer 3PEAK
File Size 1.34 MB
Description 5V 1.5-MHz Op Amp
Datasheet download datasheet LMV358X-3PEAK.pdf

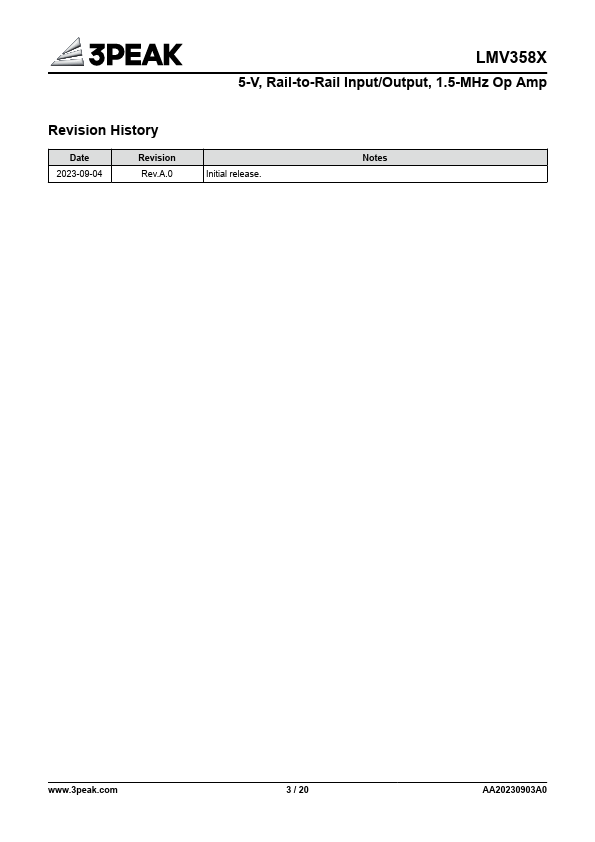

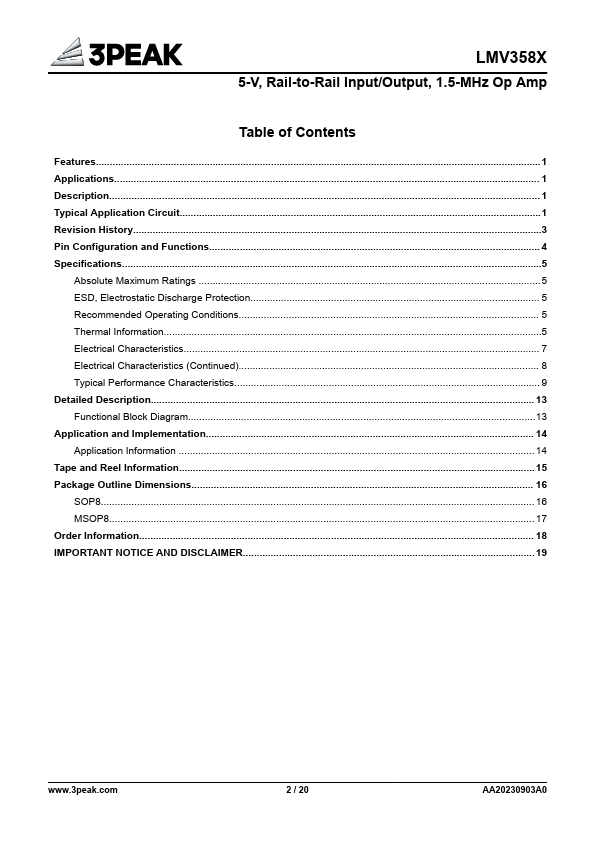

Additional preview pages of the LMV358X datasheet.

LMV358X Product details

Description

Supply Voltage: 2.5 V to 5.5 V Offset Voltage: 5 mV Maximum Bandwidth: 1.5 MHz, Slew Rate: 0.7 V/μs Low Power: 100 μA per channel Rail-to-Rail Input and Output Low 1/f Noise: 22 nV/√Hz at 1 kHz 40°C to 125°C Operation Temperature Range Applications Instrumentation Motor Control Industrial Control The LMV358X series of products are CMOS dual RRIO op-amps with low offset, low power, and s
