LMV358-N, LMV321-N - Low-Voltage Rail-to-Rail Output Operational Amplifier

Texas Instruments

The LMV358-N by Texas Instruments is a Low-Voltage Rail-to-Rail Output Operational Amplifier. Below is the official datasheet preview.

Datasheet Details

Part number	LMV358-N, LMV321-N
Manufacturer	Texas Instruments
File Size	3.58 MB
Description	Low-Voltage Rail-to-Rail Output Operational Amplifier
Datasheet	LMV321-N-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LMV358-N, LMV321-N. Please refer to the document for exact specifications by model.

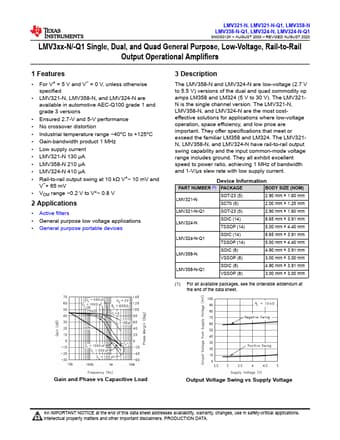

Additional preview pages of the LMV358-N datasheet.

The LMV358-N and LMV324-N are low-voltage (2.7 V to 5.5 V) versions of the dual and quad commodity op amps LM358 and LM324 (5 V to 30 V).

For V+ = 5 V and V.
= 0 V, unless otherwise specified.
LMV321-N, LMV358-N, and LMV324-N are available in automotive AEC-Q100 grade 1 and grade 3 versions.
Ensured 2.7-V and 5-V performance.
No crossover distortion.
Industrial temperature range.
40°C to +125°C.
Gain-bandwidth product 1 MHz.
Low supply current.
LMV321-N 130 μA.
LMV358-N 210 μA.
LMV324-N 410 μA.
Rail-to-rail output sw.
