LMV321TP - Micro-Power Rail-to-Rail I/O Op Amps

Description

LMV321TP/358TP/324TP are CMOS single, dual, and quad op-amps with low offset, stable highfrequency response, low power, low supply voltage, and rail-to-rail inputs and outputs.

Features

  • Stable 1.27 MHz GBWP with Low IQ of Only 40 μA Typical per Amplifier.
  • 0.9 V/μs Slew Rate.
  • Offset Voltage: 3.5 mV Maximum.
  • Offset Voltage Temperature Drift: 0.6 μV/°C.
  • Input Bias Current: 1 pA Typical.
  • Beyond the Rails Input Common-Mode Range.
  • Outputs Swing to within 5 mV Typical of each Rail.
  • No Phase Reversal for Overdriven Inputs.
  • Single +2.1 V to +6.0 V Supply Voltage Range.
  • 40°C to 125°C Operation Range.

📥 Download Datasheet

Datasheet Details

Part number LMV321TP
Manufacturer 3Peak
File Size 1.65 MB
Description Micro-Power Rail-to-Rail I/O Op Amps
Datasheet download datasheet LMV321TP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LMV321 RAIL-TO-RAIL OUTPUT OPERATIONAL AMPLIFIERS Diodes
LMV321 Rail-to-Rail Operational Amplifiers ON Semiconductor
LMV321 Rail-to-Rail Amplifiers Exar
LMV321 General Purpose / Low Voltage / Rail-to-Rail Output Operational Amplifiers National Semiconductor
LMV321 General Purpose / Low Voltage / Rail-to-Rail Output Amplifiers Fairchild Semiconductor

Other Datasheets by 3Peak

Part Number Description
LMV321A Micro-Power Rail-to-Rail I/O Op Amps
LMV321B 1MHz Op Amps
LMV324A Micro-Power Rail-to-Rail I/O Op Amps
LMV324B 1MHz Op Amps
LMV324TP Micro-Power Rail-to-Rail I/O Op Amps

Full PDF Text Transcription

Click to expand full text

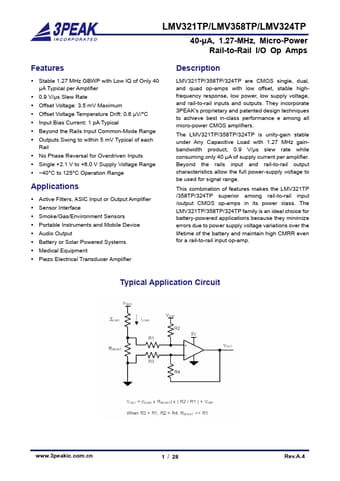

LMV321TP/LMV358TP/LMV324TP 40-μA, 1.27-MHz, Micro-Power Rail-to-Rail I/O Op Amps Features  Stable 1.27 MHz GBWP with Low IQ of Only 40 μA Typical per Amplifier  0.9 V/μs Slew Rate  Offset Voltage: 3.5 mV Maximum  Offset Voltage Temperature Drift: 0.6 μV/°C  Input Bias Current: 1 pA Typical  Beyond the Rails Input Common-Mode Range  Outputs Swing to within 5 mV Typical of each Rail  No Phase Reversal for Overdriven Inputs  Single +2.1 V to +6.
