TPW3223 - Low Voltage SPDT Analog Switch

3PEAK

The TPW3223 by 3PEAK is a Low Voltage SPDT Analog Switch. Below is the official datasheet preview.

📥 Download Datasheet

TPW3223 Low Voltage SPDT Analog Switch by 3PEAK - Datasheet Preview — Official preview page of the TPW3223 Low Voltage SPDT Analog Switch datasheet (3PEAK).

Datasheet Details

Part number	TPW3223
Manufacturer	3PEAK
File Size	596.56 KB
Description	Low Voltage SPDT Analog Switch
Datasheet	TPW3223-3PEAK.pdf

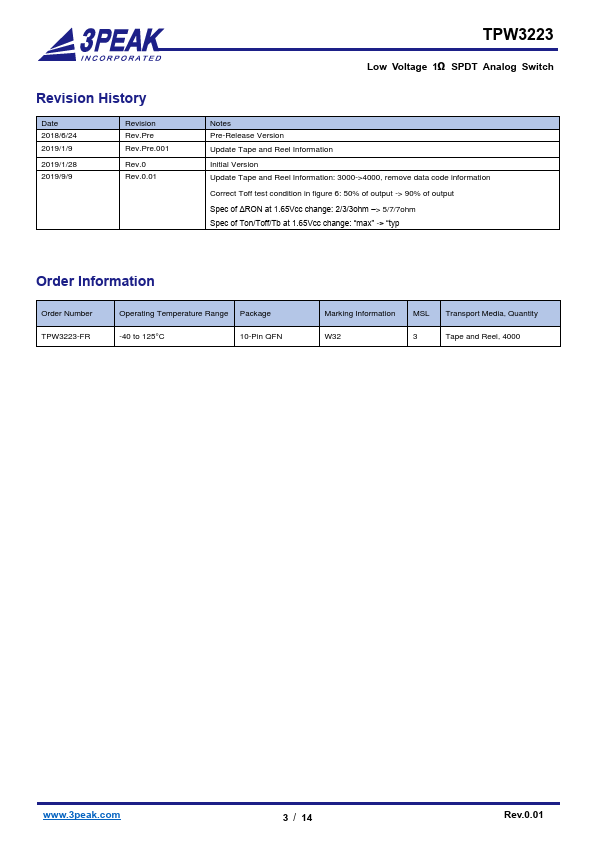

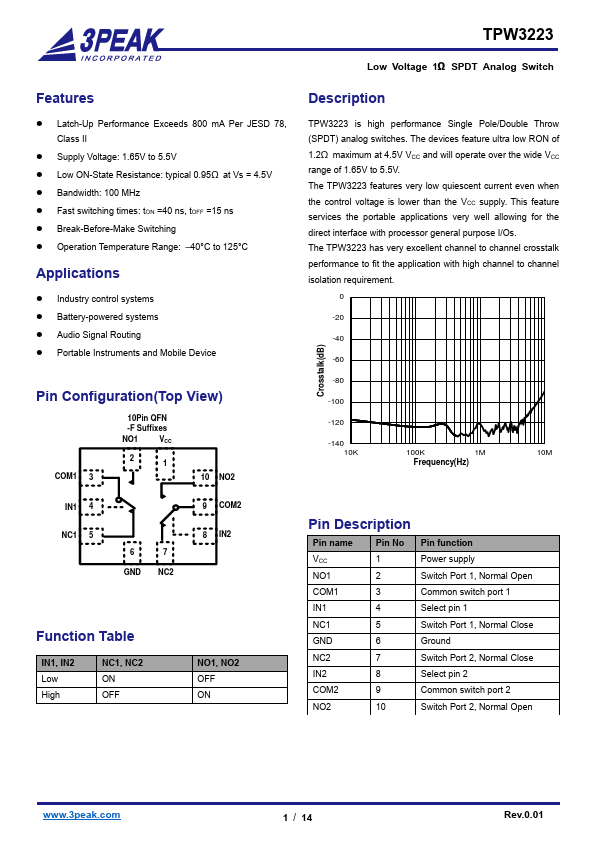

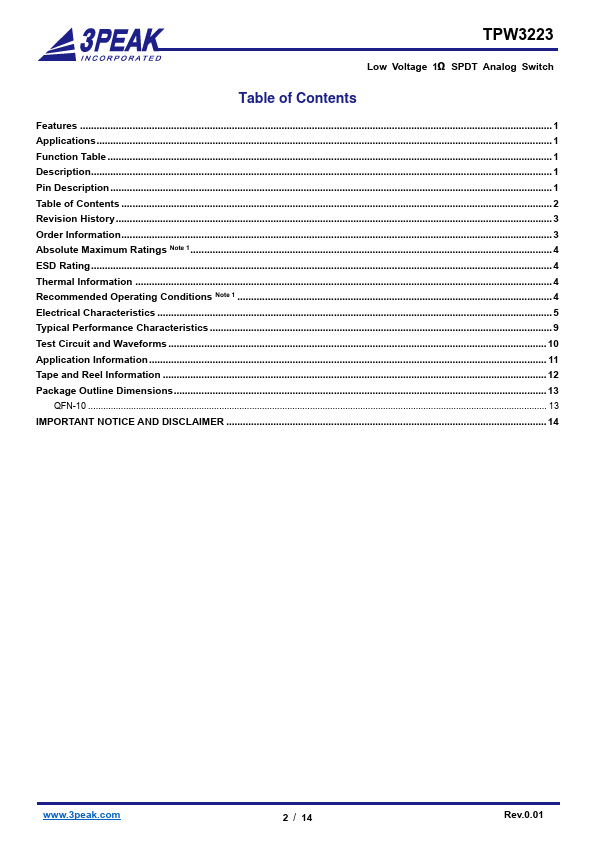

Additional preview pages of the TPW3223 datasheet.

TPW3223 Product details

Description

TPW3223 is high performance Single Pole/Double Throw (SPDT) analog switches.

Features

Latch-Up Performance Exceeds 800 mA Per JESD 78, Class II.
Supply Voltage: 1.65V to 5.5V.
Low ON-State Resistance: typical 0.95Ω at Vs = 4.5V.
Bandwidth: 100 MHz.
Fast switching times: tON =40 ns, tOFF =15 ns.
Break-Before-Make Switching.
Operation Temperature Range:.
40°C to 125°C.
