TPW3111 - Low Voltage SPST Analog Switch

3PEAK

The TPW3111 by 3PEAK is a Low Voltage SPST Analog Switch. Below is the official datasheet preview.

📥 Download Datasheet

TPW3111 Low Voltage SPST Analog Switch by 3PEAK - Datasheet Preview — Official preview page of the TPW3111 Low Voltage SPST Analog Switch datasheet (3PEAK).

Datasheet Details

Part number	TPW3111
Manufacturer	3PEAK
File Size	816.46 KB
Description	Low Voltage SPST Analog Switch
Datasheet	TPW3111-3PEAK.pdf

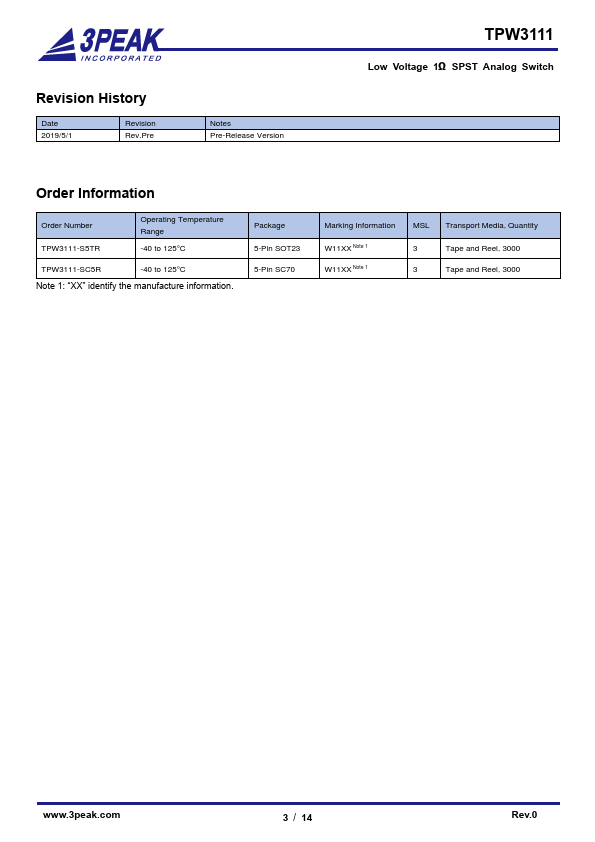

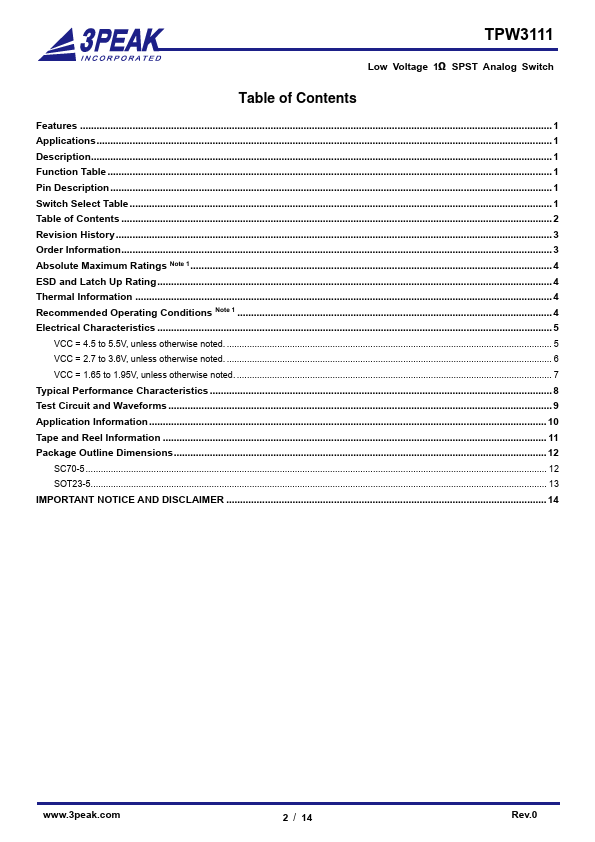

Additional preview pages of the TPW3111 datasheet.

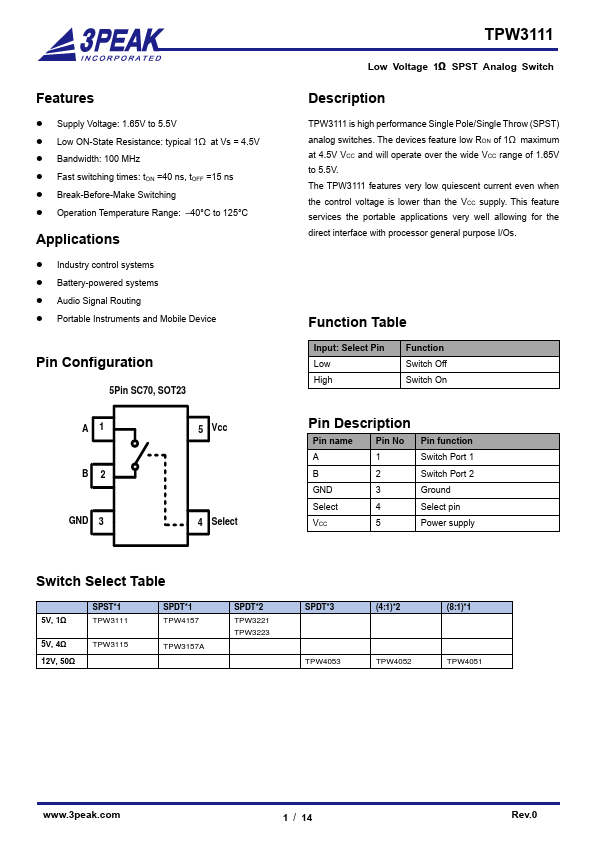

TPW3111 Product details

Description

TPW3111 is high performance Single Pole/Single Throw (SPST) analog switches.

Features

Supply Voltage: 1.65V to 5.5V.
Low ON-State Resistance: typical 1Ω at Vs = 4.5V.
Bandwidth: 100 MHz.
Fast switching times: tON =40 ns, tOFF =15 ns.
Break-Before-Make Switching.
Operation Temperature Range:.
40°C to 125°C.
