TPW3115 - Low Voltage SPST Analog Switch

3PEAK

The TPW3115 by 3PEAK is a Low Voltage SPST Analog Switch. Below is the official datasheet preview.

📥 Download Datasheet

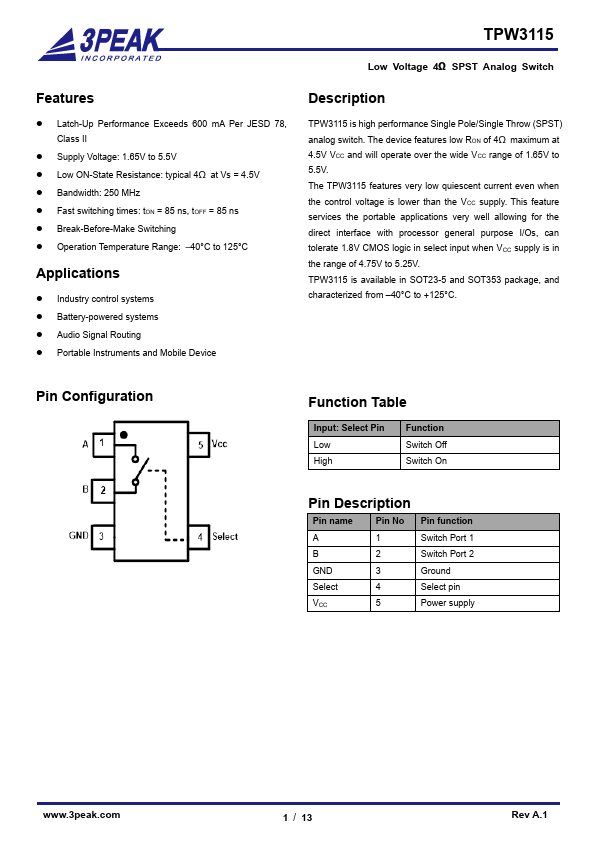

TPW3115 Low Voltage SPST Analog Switch by 3PEAK - Datasheet Preview — Official preview page of the TPW3115 Low Voltage SPST Analog Switch datasheet (3PEAK).

Datasheet Details

Part number	TPW3115
Manufacturer	3PEAK
File Size	517.81 KB
Description	Low Voltage SPST Analog Switch
Datasheet	TPW3115-3PEAK.pdf

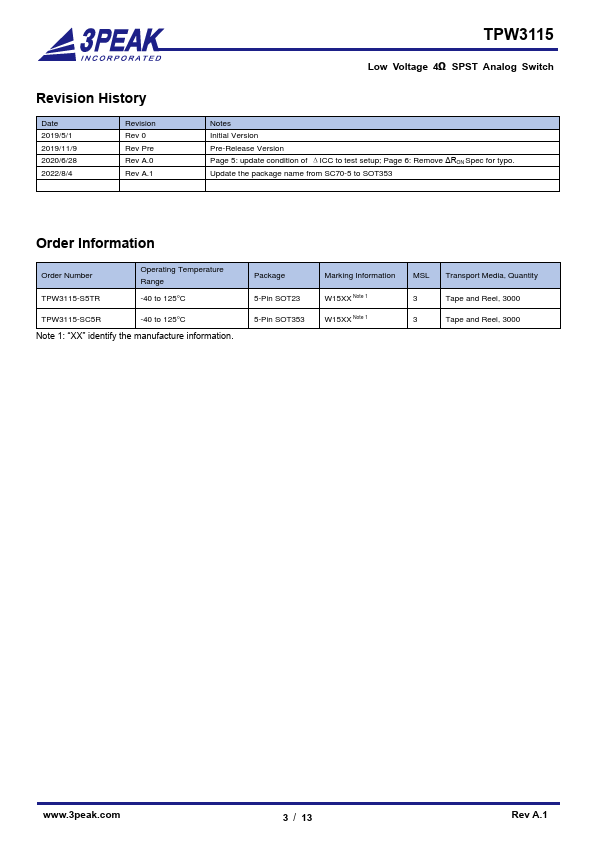

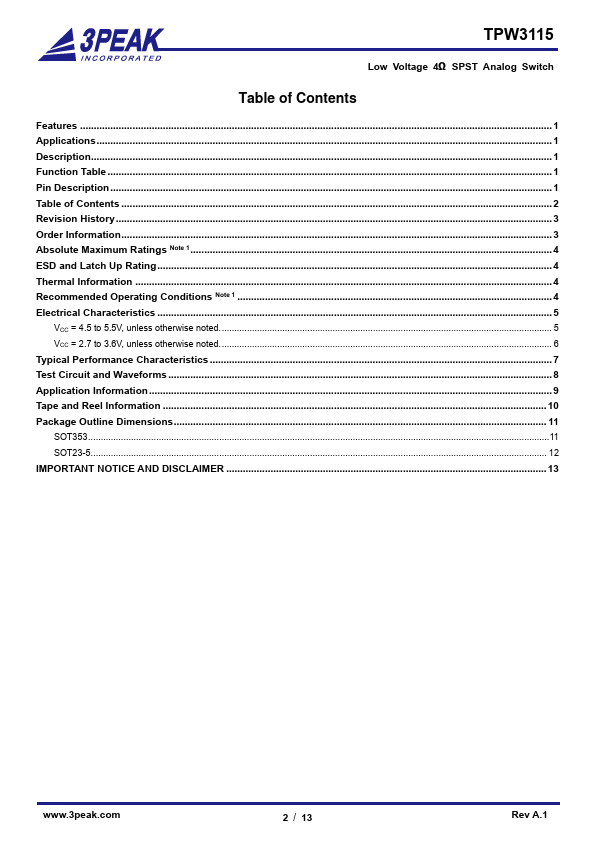

Additional preview pages of the TPW3115 datasheet.

TPW3115 Product details

Description

TPW3115 is high performance Single Pole/Single Throw (SPST) analog switch.

Features

Latch-Up Performance Exceeds 600 mA Per JESD 78, Class II.
Supply Voltage: 1.65V to 5.5V.
Low ON-State Resistance: typical 4Ω at Vs = 4.5V.
Bandwidth: 250 MHz.
Fast switching times: tON = 85 ns, tOFF = 85 ns.
Break-Before-Make Switching.
Operation Temperature Range:.
40°C to 125°C.
