TPW3157A - Low-Voltage SPDT Analog Switch

3PEAK

The TPW3157A by 3PEAK is a Low-Voltage SPDT Analog Switch. Below is the official datasheet preview.

📥 Download Datasheet

TPW3157A Low-Voltage SPDT Analog Switch by 3PEAK - Datasheet Preview — Official preview page of the TPW3157A Low-Voltage SPDT Analog Switch datasheet (3PEAK).

Datasheet Details

Part number	TPW3157A
Manufacturer	3PEAK
File Size	543.60 KB
Description	Low-Voltage SPDT Analog Switch
Datasheet	TPW3157A-3PEAK.pdf

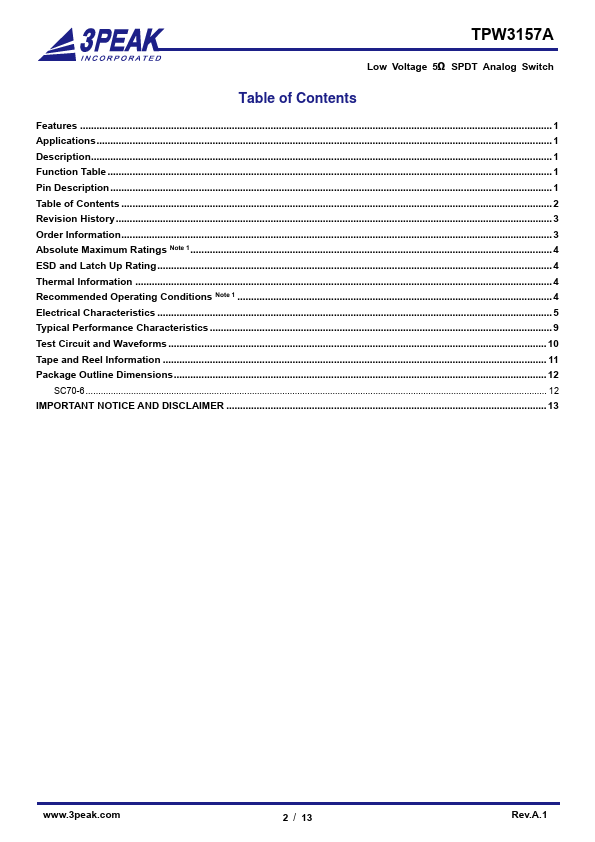

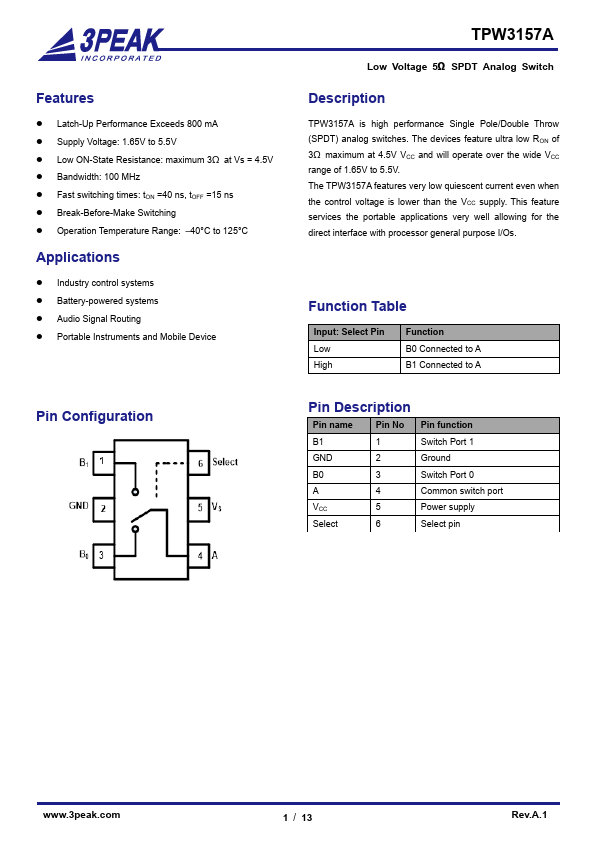

Additional preview pages of the TPW3157A datasheet.

TPW3157A Product details

Description

TPW3157A is high performance Single Pole/Double Throw (SPDT) analog switches.

Features

Latch-Up Performance Exceeds 800 mA.
Supply Voltage: 1.65V to 5.5V.
Low ON-State Resistance: maximum 3Ω at Vs = 4.5V.
Bandwidth: 100 MHz.
Fast switching times: tON =40 ns, tOFF =15 ns.
Break-Before-Make Switching.
Operation Temperature Range:.
40°C to 125°C.
