TPW1221 Low Voltage SPDT Analog Switch

3PEAK

TPW1221 Description

TPW1221 Low Voltage 0.6Ω SPDT Analog Switch .
TPW1221 is high performance Single Pole/Double Throw (SPDT) analog switch.

TPW1221 Features

* Latch-Up Performance Exceeds 600 mA Per JESD 78, Class II
* Supply Voltage: 1.65V to 5.5V
* Low ON-State Resistance: typical 0.6Ω at Vs = 2.7V
* Bandwidth: 80 MHz
* Break-Before-Make Switching
* Operation Temperature Range:

TPW1221 Applications

* Industry control systems
* Battery-powered systems
* Audio Signal Routing

📥 Download Datasheet

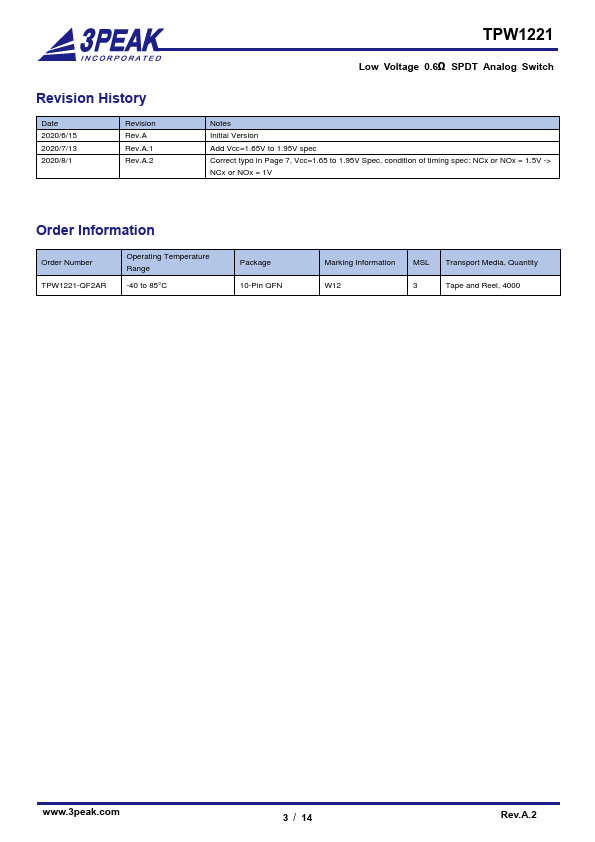

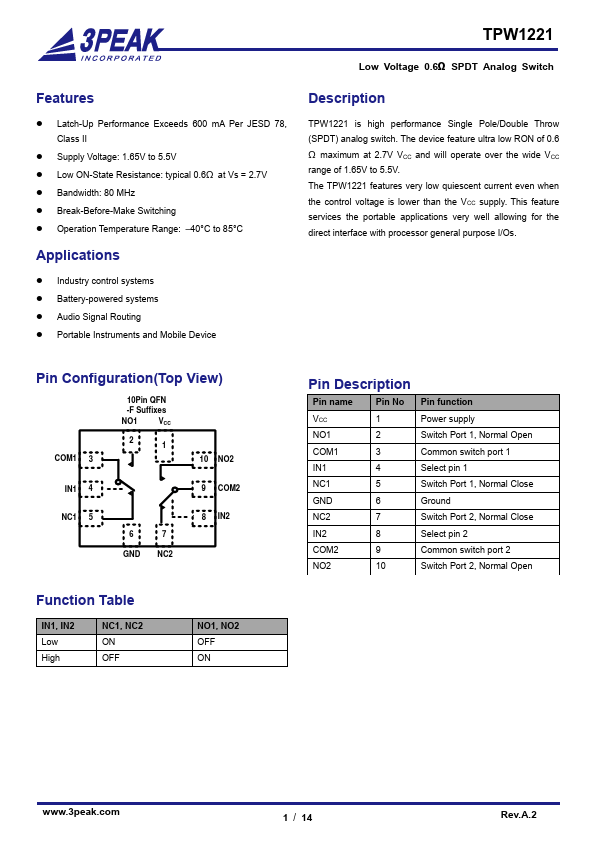

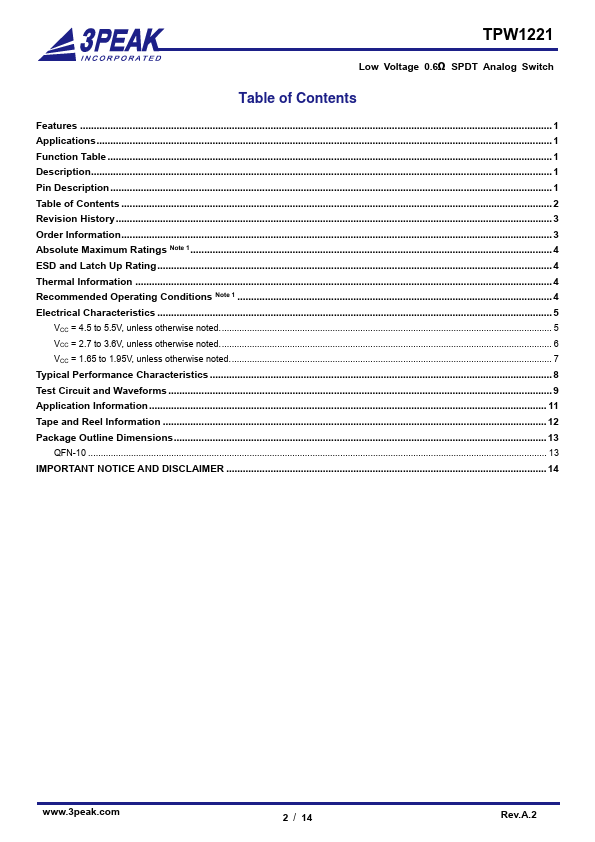

TPW1221 Datasheet Preview — Preview of TPW1221 PDF

Datasheet Details

Part number: TPW1221
Manufacturer: 3PEAK
File Size: 531.69 KB
Datasheet: TPW1221-3PEAK.pdf
Description: Low Voltage SPDT Analog Switch
