TPT7742-S, TPT7740-S 4-Channel Enhanced High-Performance Digital Isolator

TPT7742-S Description

TPT774x-S 4-Channel Enhanced High-Performance Digital Isolator .
150-Mbps Data Rate. 5-kV RMS Isolation Rating (WSOP). ±200-kV/μs typ Static CMTI, ±150-kV/μs typ Dynamic CMTI. L.

TPT7742-S Applications

* with AEC-Q100 Reliability Test Applications The TPT774x devices are high-performance, 4-channel digital isolators with 5000-VRMS (WSOP16), and 3750-VRMS (SOP16, QSOP16) isolation ratings per UL 1577. These devices are also to be certified by VDE, UL, CSA, TUV, CQC, and CB. The TPT774x devices provi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPT7742-S, TPT7740-S. Please refer to the document for exact specifications by model.

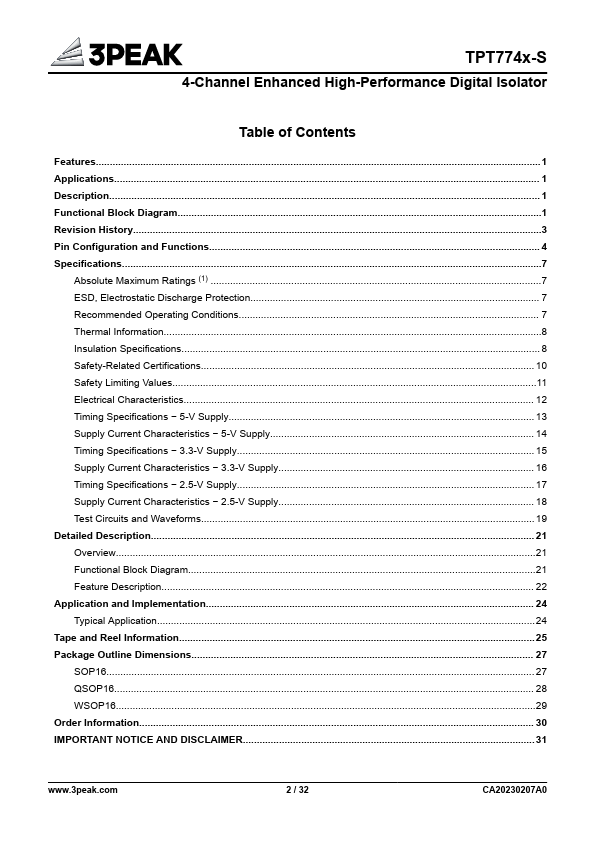

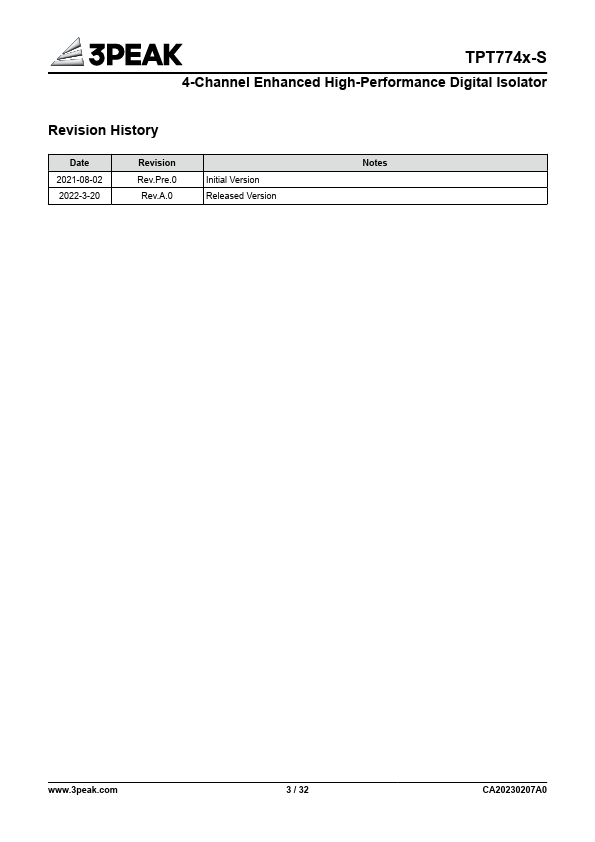

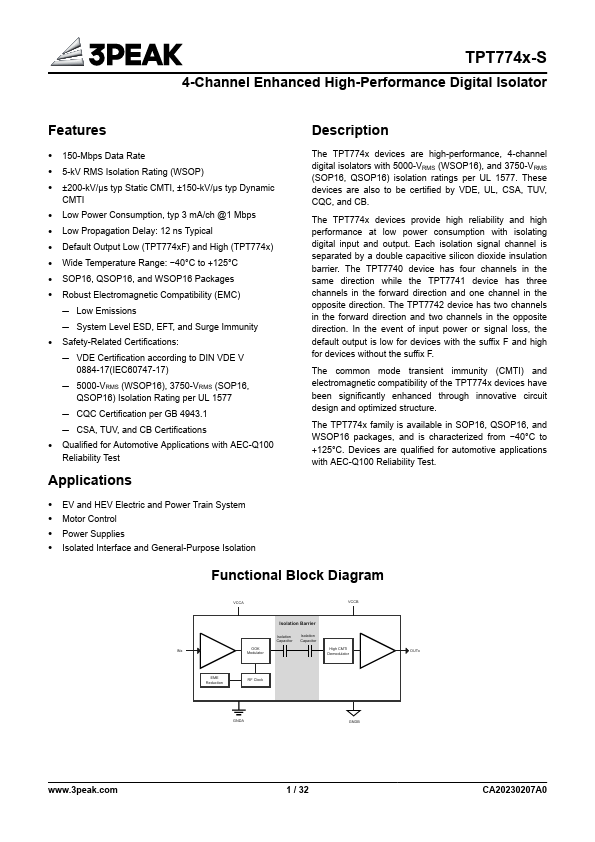

datasheet Preview Page 2 datasheet Preview Page 3
